FSII-TCVR-IP-19-US | FSII IP CONNECTED TRANSCEIVER (IPT) FOR THE FREESPEAK II DIGITAL WIRELESS SYSTEM

The FSII-TCVR-IP-19 is an active transceiver antenna for the FSII-BP19 and FSIC-BP19 beltpacks. The transceiver connects to the Eclipse® HX matrix system via the E-IPA-HX interface card. Each transceiver can support up to 10 FSII-BP19 or FSIC-BP19 beltpacks. When supported with the E-IPA card, up to 50 1.9 GHz beltpacks (in North America or 64 beltpacks in EU countries) and up to 64 transceivers can be supported on one Eclipse HX matrix system.

Features:

• Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX card
• Requires E-IPA-HX card and Eclipse HX frame
• For use with FreeSpeak II 1.9 GHz only
• Operates over IP on AES67 compatible network
• Supports 10 FSII-BP19 or FSIC-BP19 beltpacks per transceiver
• Up to 64 transceivers supported on Eclipse HX matrix system

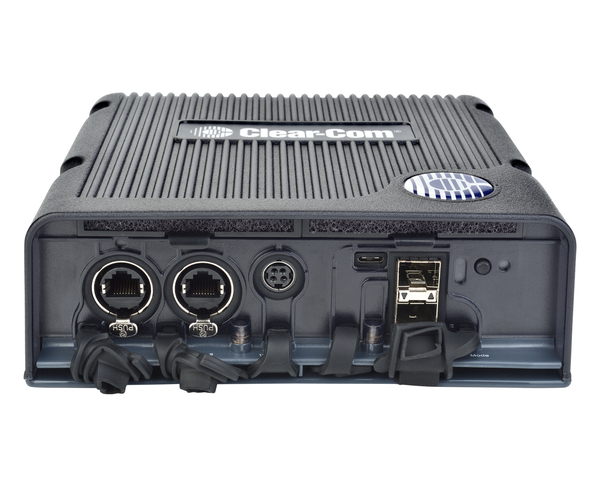

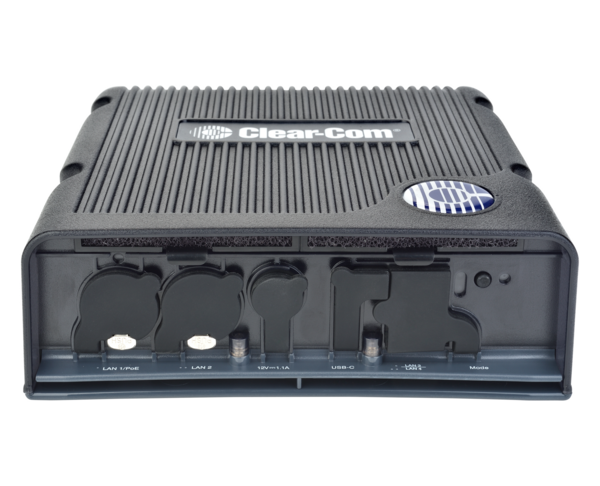

• Two Ethercon RJ45 network connections
• One high speed fiber SFP cage
• Power-over-Ethernet (PoE) up to 300 ft (91 m)
• Green LED status indicator

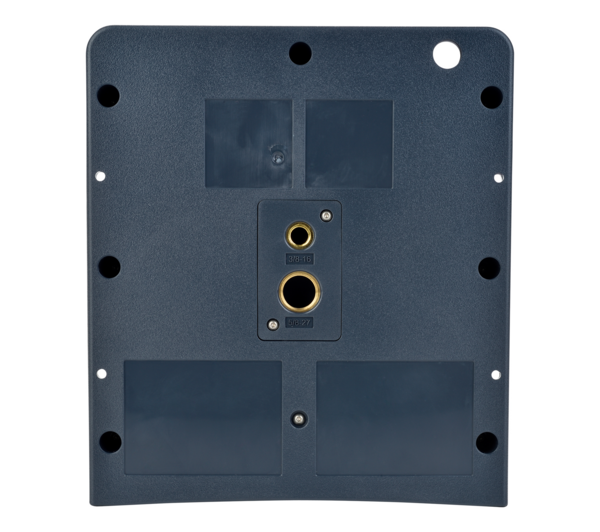

• Mic stand or wall mount orientation with metric and imperial threads
• IP53 rating for wet and dry conditions
