GENETIX10SCSTORE | CHAMSYS GENETIX 10SCENE STORE, STORES 10 STATIC LIGHTING SCENES

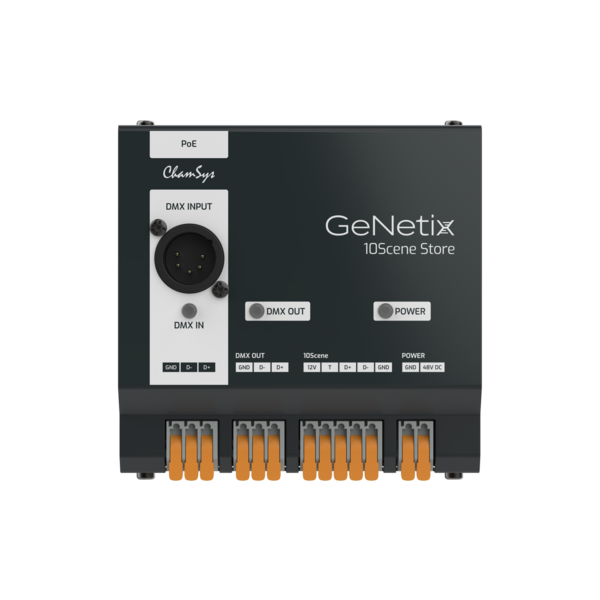

GeNetix 10Scene Store is a single universe wall or DIN Rail mounted standalone playback device that stores 10 static lighting Scenes (cues) which can be recalled with connected 10Scene wall plates. Load Scenes from either QuickQ or MagicQ show files or program via its in-built DMX Input port. Powered by either PoE or external 48V power supply, this simple installation device supports up to ten 10Scene wall plates, and features one DMX IN (XLR5 & Wago), one DMX OUT (Wago) and a network port.

The 10Scene Store operates as a stand-alone device, where 10 Static Scenes can be stored and then replayed. Scenes can be replayed via: Webserver, 10Scene Button stations connected to the unit or via Network using either the ChamSys iOS or Android 10Scene App or UDP messages allowing 3rd Party Scene Control Integration.

Scenes can be programmed either via the units direct DMX Input. When DMX Input is received the device is automatically placed into programmed mode, pressing and holding a 10Scene button on a wall station (for 5 seconds) stores the current DMX input as that scene. Disconnecting the DMX Input exits programming mode. When an Incoming DMX Input is received this takes priority over any powered Scenes.

When connected via Network Scenes can be loaded to the 10Scene Store from either MagicQ or QuickQ. The 10Scene Store has mode which allows incoming Art-Net / sACN to take priority and loop through the devices DMX Output when received. When Art-Net/sACN is lost then the Scenes panel takes over control again, reconnecting Art-Net/sACN will then take priority again.

The 10Scene Store supports a single contact triggers, which can be configured to override both powered Scenes or Art-Net/sACN data by activating a configured Scene.

Features:

• Stores 10 Static Lighting Scenes with fade times
• Scenes can sent and retreived from either MagicQ or QuickQ
• Scenes can be programmed via any DMX console via DMX Input
• Can be PoE or 48v DC powered
• Integrates with 10Scene Wall Plates & 10Scene App for triggering of Scenes
