GENETIXGD10 | 10 PORT RDM E1.20 COMPLIANT DMX SPLITTER (1 IN TO 10 OUPUT OR 2 IN TO 5 OUTPUT MODE), 1RU MOUNTABLE
GENETIXGD10
10 PORT RDM E1.20 COMPLIANT DMX SPLITTER (1 IN TO 10 OUPUT OR 2 IN TO 5 OUTPUT MODE), 1RU MOUNTABLE
GENETIXGD10
10 PORT RDM E1.20 COMPLIANT DMX SPLITTER (1 IN TO 10 OUPUT OR 2 IN TO 5 OUTPUT MODE), 1RU MOUNTABLE
- UM : EA

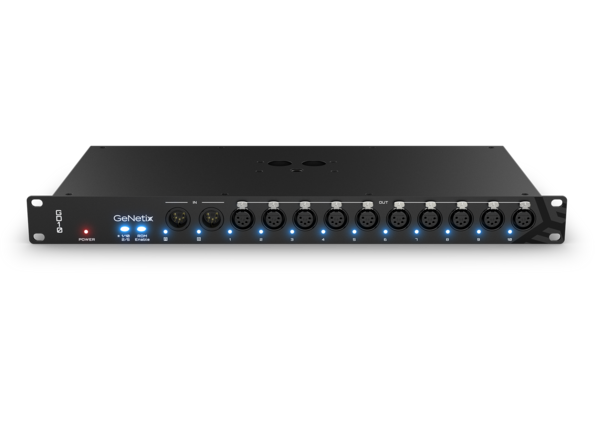

GeNetix GD10 is a 19″ 1U rack-mountable, RDM-capable 10-Port DMX Splitter at home in many different environments, with a design suited for both long-term installations and live events. Two selectable operating modes offer either 1×10 or 2×5 DMX signal distribution. GD10 features an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, and its ruggedly built construction includes a PowerCon True1 Mains Input connector.
Features:
- 10 Port RDM E1.20 Compliant DMX Splitter
- 2 Input / 10 Output DMX Splitter
- 1 In to 10 Ouput or 2 In to 5 Output Mode
- 19” 1U Rack Mountable
| 5 Pin DMX Output Ports | 10 |
|---|---|
| 5 Pin DMX Input Ports | 2 |
| RDM Enable/Disable Option | Yes |
| M12 Clamp Fixing | Yes |

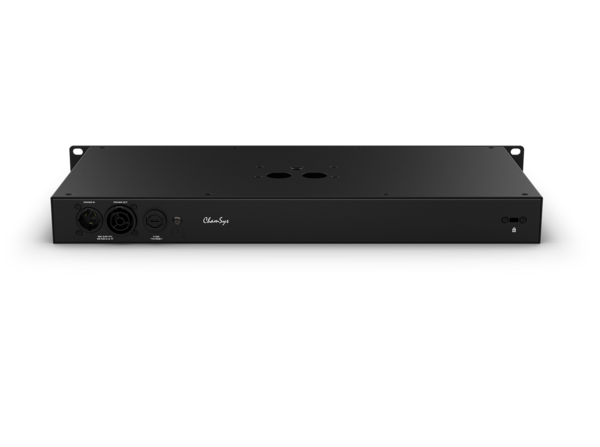

| Power Input | Neutrik powerCON TRUE1 110 to 240 VAC |
| Max Power Consumption (mains) | 6.5w |
