GIGBARBRIDGEILS | MOVING HEADS / WASH LIGHT SYSTEM, ILS COMPATIBLE

  • MAP: $999.99 / EA
  • List Price: $1,333.34 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
MOVING HEADS / WASH LIGHT SYSTEM, ILS COMPATIBLE
MOVING HEADS / WASH LIGHT SYSTEM, ILS COMPATIBLE
Click image to enlarge
MOVING HEADS / WASH LIGHT SYSTEM, ILS COMPATIBLE
MOVING HEADS / WASH LIGHT SYSTEM, ILS COMPATIBLE

GIGBARBRIDGEILS
MOVING HEADS / WASH LIGHT SYSTEM, ILS COMPATIBLE

  • UM : EA
  • Estimated Weight: 27.0

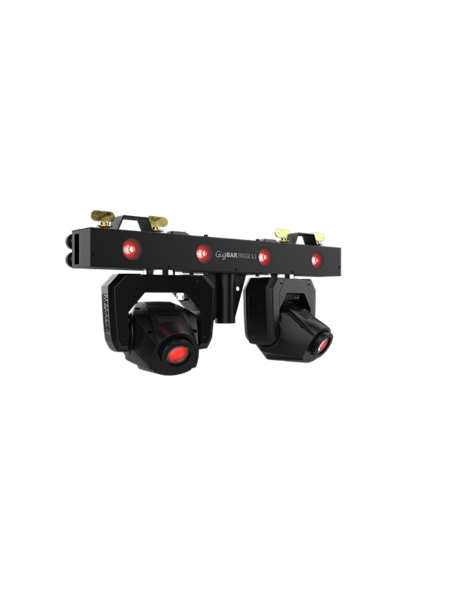

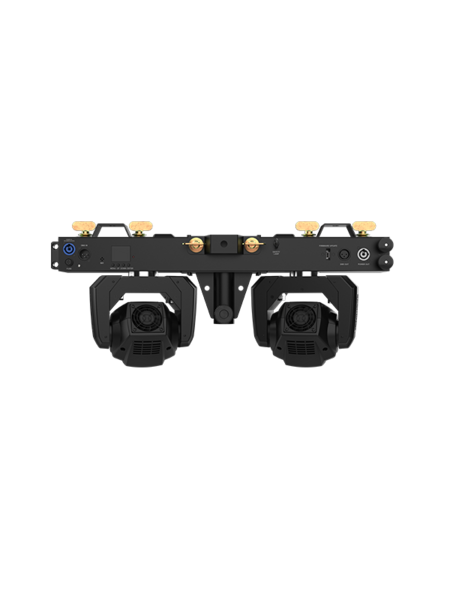

Enjoy a customizable party lighting setup that suits your needs with the connectable GigBAR Bridge ILS. This 2-in-1 lighting system has a minimal setup time thanks to its moving heads and wash lights that come pre-mounted onto a single bar. ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Create dynamic dancefloor moments with just one system.

Features:

  • 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
  • Quickly and securely connect multiple fixtures with the built-in locking system
  • Built-in DFI transceiver communicates DMX or ILS signals wirelessly
  • Safely mounts onto truss or mobile tripods using the removable bracket
  • Easy navigation and access all functions directly from the full-color LCD display
  • Powerful moving heads with separate color and gobo wheels allow for creative programming
  • Totem Mode keeps the moving heads focused on the dance floor
  • Save time running cables and extension cords by power linking multiple units
  • ILS compatibility for use in the ILS ecosystem
  • Use the included RF remote to trigger the built-in shows without needing line of sight
Dmx channels:3, 16 or 46
Dmx connectors:3-pin XLR
Strobe rate:0 to 20Hz
Operating frequency:2.4 GHZ
Power linking:8 units @ 120 V
13 units @ 230 V
Input voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight:18.6 lbs (8.4 kg)
Size:26 x 2.8 x 12 in (660 x 71 x 305 mm)
Approvals:CE, RoHS , FCC
Colors (moving head):9 + open, split colors, continuous scroll at variable speeds
Gobos (moving head):9 + open, continuous scroll at variable speeds
Light source (moving head):1 LED (cool white) 40W (3A), 50,000 hours life expectancy.
Light source (wash):4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
Beam angle (wash):22°
Field angle (wash):38°
Power and current:191 W, 1.5 A @ 120 VAC, 60Hz
Power and current:175 W, 1 A @ 230 VAC, 50Hz
Fits tripod sizes:1.5 in (37.4 mm)
Max unobstructed distance (d-fi):600 ft (183 m)
Optional controllers:RF, Footswitch, ILS Command
Illuminance (moving head):6,594 Lux @ 2 m (per head)
Illuminance (wash):375 lux @ 2 m (per section)
