GROUNDSTACKKIT | GROUND STACK KIT, WORKS WITH REM RENTAL AND F-SERIES VIDEO PANELS
GROUNDSTACKKIT
GROUND STACK KIT, WORKS WITH REM RENTAL AND F-SERIES VIDEO PANELS
GROUNDSTACKKIT
GROUND STACK KIT, WORKS WITH REM RENTAL AND F-SERIES VIDEO PANELS
- UM : EA
- Estimated Weight: 355.0

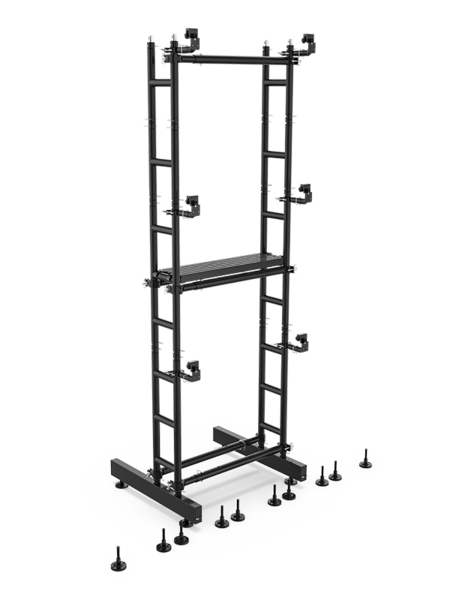

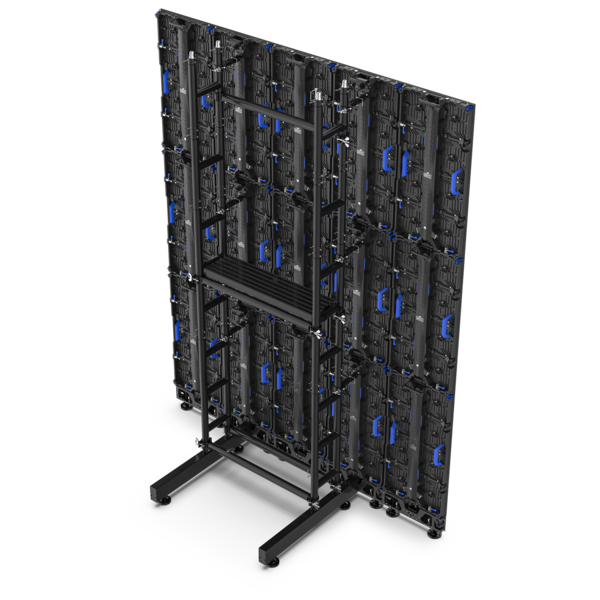

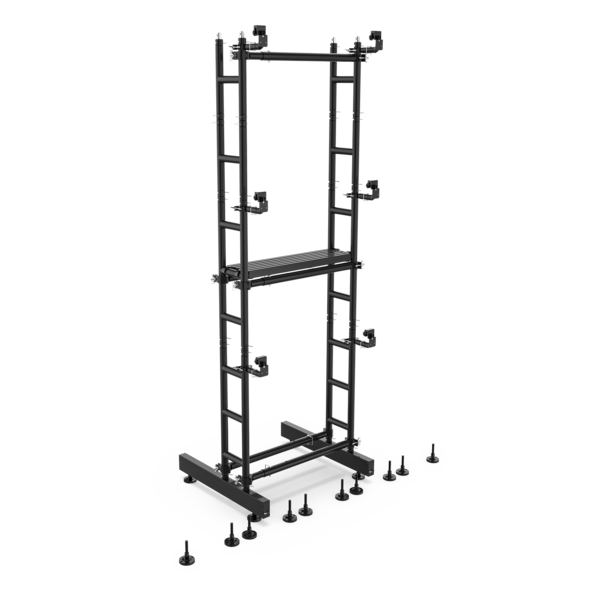

Our Ground Stack Kit provides a complete ground support solution for stacking REM1, REM3IP, F2, F3/F3X, F4IP/F4XIP, and F5IP video panels, and supports flat, convex and concave video walls, including 2.5° and 5° convex curves, 5° and 10° concave curves. This climbable system includes a platform for use when rigging taller walls. Suitable for walls between 4.92 ft (1.5 m) and 6.56 ft (2 m) wide and as high as 9.85 ft (3 m) tall. Scalable design allows combining multiple Ground Stack Kits to create wider walls. Ground Stack Kit ships in a road case that makes loading in and out easy. Note: Dual Function Rig Bars (not included) are required for operation.
Features:
- Designed for CHAUVET Professional REM, F2, F3, F4, and F5 series video panels.
- Accommodates flat, convex (2.5°/5°), and concave (5°/10°) video wall configurations.
- Supports video walls from 1.5m to 2m wide and up to 3m high per kit.
- Features a scalable design to combine multiple kits for constructing wider walls.
- Includes an integrated, climbable platform to simplify the assembly of taller walls.
- Ships in a durable road case for convenient transport, setup, and teardown.
| Dimensions (packed in case) | 50.4 x 21.1 x 39.3 in (128 x 53.5 x 99.9 cm) |
|---|---|
| Exterior Color | Black |
| Housing Material | Aluminum extrusion and Steel |
| Maximum vertical stack supported | 3 m tall |
| Maximum width supported | 2.0 m wide |
| Maximum person weight supported | 250 lb (113.4 kg) |
| Certifications | CE |
| IP Rating | IP65 (temporary outdoor use) |
| Wind Rating | consult structural engineer for proper ballast weight and reinforcement |
| Temperature (Ambient) | -4 °F to 140 °F (-20 °C to 60 °C) |
