HB-702 | 2 CH. FLUSH-MOUNT HEADSET STATION:  ENCORE TWO-CHANNEL SELECTABLE FLUSH-MOUNT HEADSET STATION.MOUNTS

  • MAP: $585.00 / EA
  • List Price: $585.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
2 CH. FLUSH-MOUNT HEADSET STATION:  ENCORE TWO-CHANNEL SELECTABLE FLUSH-MOUNT HEADSET STATION.MOUNTS
Click image to enlarge

HB-702
2 CH. FLUSH-MOUNT HEADSET STATION:  ENCORE TWO-CHANNEL SELECTABLE FLUSH-MOUNT HEADSET STATION.MOUNTS

  • UM : EA

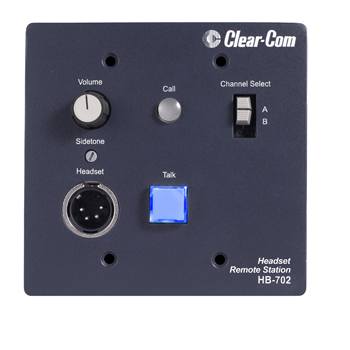

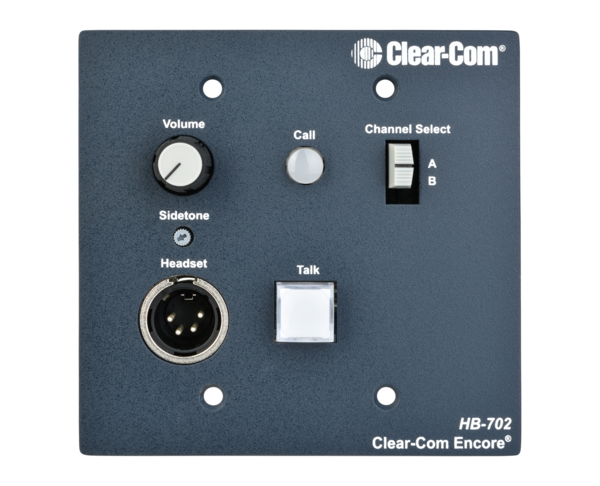

The HB-702 is a two-channel selectable, full-duplex headset station designed for wall or surface mounting. It supports simultaneous two-way communication on selectable channels.

Power requirements for the HB-702 can be determined using the Encore Power Supply Calculator for analog partyline systems.

Features:

  • Momentary/latching talk switch with led
  • Microprocessor controlled logic and switching
  • Visual call signaling
  • Headset connector with volume control and sidetone adjust
  • Optional 4-wire daughter board
  • Mountable into standard us two-gang outlet box
Input typeDynamic
Input impedance>= 1k
Mic limiter threshold-2dbu ± 3db
Mic limiter range>= 15db
Load impedance>= 8
Output impedance<= 25
Output limiter threshold+5dbu ± 3db
Maximum output level before distortion>= 17dbu
Off noise< -74dbu
Crosstalk< -60db
