HBD9320 | 12" 2-WAY CINEMA SURROUND. IDEAL FOR MULTI-CHANNEL SURROUND APPLICATIONS.

  • MAP: $1,079.00 / EA
  • List Price: $1,077.38 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
12" 2-WAY CINEMA SURROUND. IDEAL FOR MULTI-CHANNEL SURROUND APPLICATIONS.
12" 2-WAY CINEMA SURROUND. IDEAL FOR MULTI-CHANNEL SURROUND APPLICATIONS.

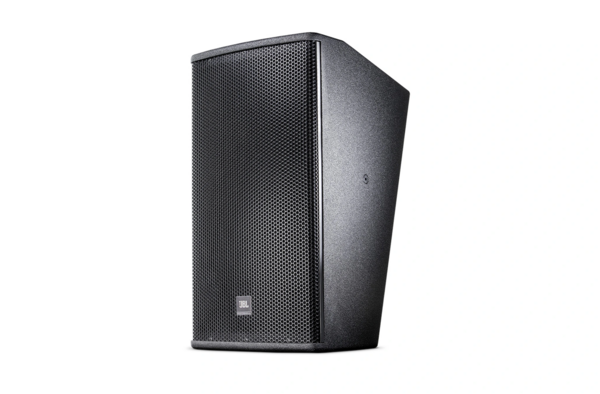

Click image to enlarge
12" 2-WAY CINEMA SURROUND. IDEAL FOR MULTI-CHANNEL SURROUND APPLICATIONS.
12" 2-WAY CINEMA SURROUND. IDEAL FOR MULTI-CHANNEL SURROUND APPLICATIONS.

HBD9320
12" 2-WAY CINEMA SURROUND. IDEAL FOR MULTI-CHANNEL SURROUND APPLICATIONS.

  • UM : EA
  • Estimated Weight: 3.0

The HBD9320 is a 12-inch two-way cinema surround speaker designed for multi-channel applications. It features high power handling capacity, high sensitivity, and an extended bass frequency response. The speaker’s specifications enable its use in high-power surround sound environments.

Features:

  • 35 Hz to 20 kHz frequency range
  • High sensitivity
  • 98 dB SPL at 1W, 1m
  • 400 watts continuous power handling
  • Multiple M-10 threaded mounting points
  • 120° x 60° coverage pattern
  • Multi-ply birch enclosure
  • Progressive transition high-frequency waveguide
  • Input terminals on top of cabinet
Frequency Range (±3 dB) 50 Hz - 19 kHz
Frequency Range (-10 dB) 35 Hz - 20 kHz
Power Handling (2Hr AES Rating) 400 W
Sensitivity 98 dB
Maximum SPL (1m) 124 dB
Nominal Impedance 8 Ω
Horizontal Coverage Angle (-6 dB) 120°
Vertical Coverage Angle (-6 dB) 60°
Directivity Factor (Q) 6.3 averaged 800 Hz to 10 kHz
Crossover Frequency 1.9 kHz
