HFCS1LP | HIGH-FIDELITY CEILING SPEAKER (LOW-PROFILE/REDUCED BACK CAN DEPTH) FOR 16-OHM, 70V, & 100V SYSTEMS

HFCS1LP
HIGH-FIDELITY CEILING SPEAKER (LOW-PROFILE/REDUCED BACK CAN DEPTH) FOR 16-OHM, 70V, & 100V SYSTEMS

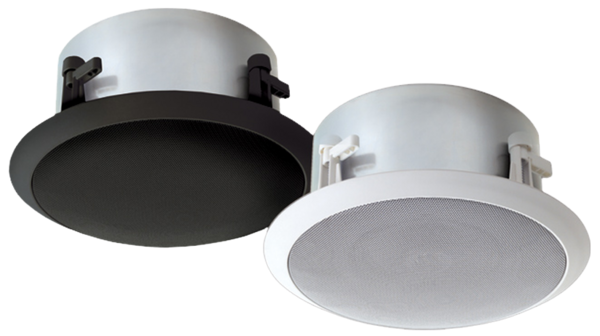

The Bogen HFCS1(B) and HFCS1LP(B) ceiling loudspeakers deliver superior sound and clear intelligibility in a variety of ceiling environments. The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions. Both speakers offer several levels of power output controlled via a front-mounted rotary tap selector switch (under grille). The low-distortion speaker design, coupled with a computer-matched venting system, delivers high intelligibility and exceptional low-frequency response for both music and speech reinforcement

FEATURES

• - Wide-dispersion coaxial driver for broad, even coverage
• - Good off-axis response with smooth contouring
• - Computer-matched venting system for full bass output
• - Large back can for deeper bass response (HFCS1/B)
• - Low-profile housing allows greater range of installations (HFCS1LP/B)
• - High power handling capability for foreground sound
• - Selectable power taps via front-mounted control
• - Power taps (in watts): 32, 16, 8, 4, 2, and 1 for 70V; 32, 16, 8, 4, and 2 for 100V
• - 16-ohm input for non-transformer, multi-speaker systems (selectable via tap selector switch)
• - Compounded rubber surround, plus polypropylene and polycarbonate drivers for lasting performance Easy wiring with plug-in connector
• - Integral swing-out clamps for easy installation
• - Connector provides loop-through terminals for the next speaker
• - Attachment point for seismic cable (safety cable)
• - Input terminal cover with knockouts and safety eyelet provides protection for connections
• - Off-white or Black textured finish easily painted to match theme decor
• - Attractive, contemporary, sturdy steel grille assembly with fine perforations
• - Listed to UL Standard 60065 for US and Canada
