HPD4641 | 8 OHM, SINGLE 18" BASS REFLEX SUBWOOFER SYSTEM. COMPONENTS:

  • MAP: $1,269.00 / EA
  • List Price: $1,267.51 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
8 OHM, SINGLE 18" BASS REFLEX SUBWOOFER SYSTEM. COMPONENTS:
Click image to enlarge

HPD4641
8 OHM, SINGLE 18" BASS REFLEX SUBWOOFER SYSTEM. COMPONENTS:

  • UM : EA
  • Estimated Weight: 3.0

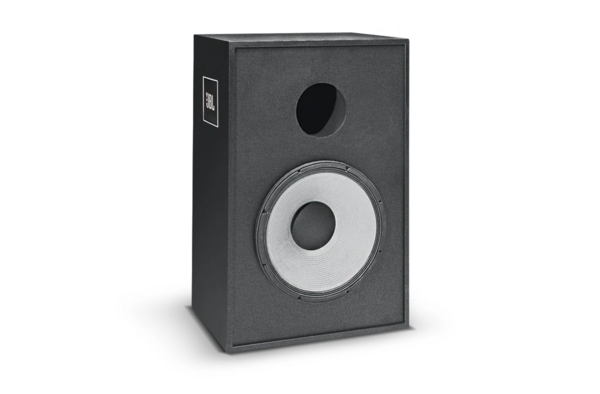

The HPD4641 subwoofer system incorporates a 460 mm (18 in) low-frequency transducer mounted in a direct radiator, bass-reflex enclosure. The design supports low-frequency sound reproduction with an emphasis on frequencies at the lower end of the audible spectrum. The enclosure utilizes bass-reflex tuning to enhance response. This system is suited for low-frequency augmentation in sound reinforcement and motion picture theater applications.

Features:

  • 600W continuous pink noise power
  • 1200W continuous program power handling
  • Usable frequency response down to 25 Hz (-10 dB, no EQ)
  • Flat frequency response to 25 Hz (-3 dB) with external EQ
  • 2241H Vented Gap Cooled driver
  • High sensitivity
  • Low power compression
  • High maximum SPL capability
  • Low 2nd and 3rd harmonic distortion
  • Symmetrical Field Geometry (SFG) magnet structure
  • Long excursion capability
Frequency Range (±3 dB) 25 Hz - 100 Hz
Frequency Range (-10 dB) 22 Hz - 500 Hz
Transducer JBL Model 2241H Low Frequency Transducer
Nominal Impedance 8ohms
Minimum Impedance 6.3ohms
Continuous Pink Noise Power 600W
Continuous Program Power 1200W
Peak Power 2400W
Axial Sensitivity (50 Hz to 500 Hz) 98 dB, 1W @ 1m
Recommended Crossover Frequencies High-pass 20 Hz, 24 dB/octave or greater; Low-pass 80 Hz to 150 Hz, 12 dB/octave or greater
