HPD5628 | 4000W, DUAL 2269H 18" DRIVERS, VERY HIGH POWER CINEMA SUBWOOFER

  • MAP: $4,189.00 / EA
  • List Price: $4,182.80 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
4000W, DUAL 2269H 18" DRIVERS, VERY HIGH POWER CINEMA SUBWOOFER

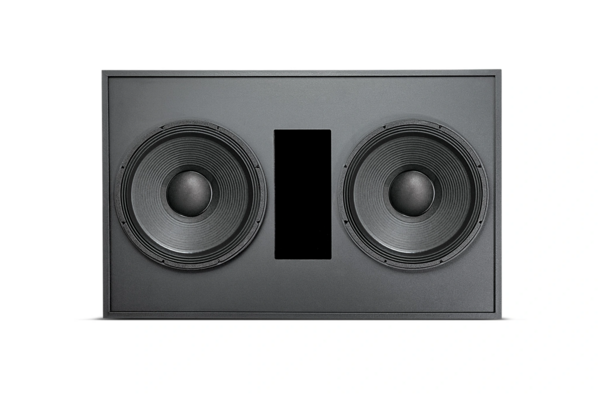

Click image to enlarge

HPD5628
4000W, DUAL 2269H 18" DRIVERS, VERY HIGH POWER CINEMA SUBWOOFER

  • UM : EA
  • Estimated Weight: 3.0

HPD5628 is a front-loaded vented subwoofer enclosure containing two JBL 2269H Ultra Long Excursion 18-inch Differential Drive woofers. Each woofer includes a neodymium magnet, dual voice coils, and dual magnetic gaps. The design incorporates JBL’s Vented Gap Cooling system and a composite cone engineered for high excursion and durability.

Each woofer supports a peak-to-peak maximum excursion of 89 mm (3.5 inches). The enclosure is designed for high power output and lightweight operation in cinema subwoofer applications.

Features:

  • 2 x 18" Differential Drive 2269H woofers
  • Dual voice coil dual gap
  • Neodymium magnet transducers
  • 4000W continuous pink noise power handling
  • 16000W peak power handling
  • Ultra long excursion
  • Large vent area for high output
  • Low distortion
Frequency Range (±3 dB) 24 Hz - 155 Hz (2π) / 27 Hz - 1.5 kHz (4π)
Frequency Range (-10 dB) 18 Hz - 1.63 kHz (2π) / 19 Hz - 1.75 kHz (4π)
Input Modes Drivers Discrete
Transducer Power Rating 4000 W (16000 W peak), 2 hrs
Long-Term System Power Rating 2400 W (9600 W peak), 100 hrs
Maximum SPL (1m) 134.5 dB (peak 140.5 dB) Half-space, 128.5 dB (peak 134.5 dB) Full-space
Sensitivity 95 dB
Nominal Impedance 4Ω in parallel-drive mode, 2 x 8Ω in discrete-drive mode
LF Drivers 2 x 2269H, 18 in dia, 4 in Dual Coil Dual Gap neodymium Differential Drive, VGC drivers
Input Connector 2 x +/- Push Terminals for up to 12 AWG wire
