HPD8320 | TWO-WAY SURROUND SYSTEM, 8" LOW FREQUENCY DRIVER, 1” DOME TWEETER

  • MAP: $410.00 / EA
  • List Price: $492.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
TWO-WAY SURROUND SYSTEM, 8" LOW FREQUENCY DRIVER, 1” DOME TWEETER
TWO-WAY SURROUND SYSTEM, 8" LOW FREQUENCY DRIVER, 1” DOME TWEETER
Click image to enlarge
TWO-WAY SURROUND SYSTEM, 8" LOW FREQUENCY DRIVER, 1” DOME TWEETER
TWO-WAY SURROUND SYSTEM, 8" LOW FREQUENCY DRIVER, 1” DOME TWEETER

HPD8320
TWO-WAY SURROUND SYSTEM, 8" LOW FREQUENCY DRIVER, 1” DOME TWEETER

  • UM : EA
  • Estimated Weight: 3.0

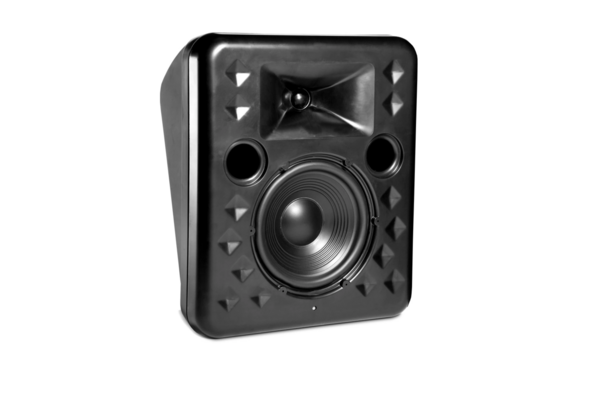

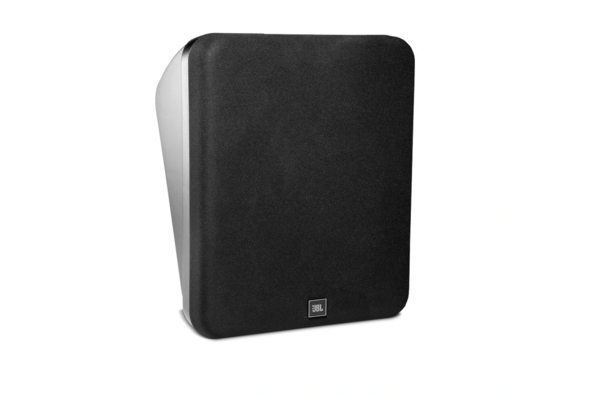

The HPD8320 is a compact two-way cinema surround speaker designed for digital audio applications. It features high power handling capacity, elevated sensitivity, and extended bass response within a compact enclosure.

The speaker's design supports the dynamic range necessary for digital sound formats, offering reliable performance for surround sound environments.

Features:

  • 50 Hz to 20 kHz frequency range
  • High sensitivity 91 dB SPL
  • 150W continuous power handling
  • Internal Thermomaster technology for high frequency power
  • Compact molded enclosure
  • Convenient mounting design with QuickMount, Omnimount, or APC brackets
  • 20° angled front baffle cabinet shape
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight rigid molded enclosure
  • Input terminals on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX Approved
Frequency Range (±3 dB) 65 Hz - 18 kHz
Frequency Range (-10 dB) 50 Hz - 20 kHz
Power Rating 150W continuous pink noise, 600W peak
Sensitivity 94 dB-SPL half-space / wall-mounted, 91 dB-SPL free-field
Maximum SPL (1m) 116 dB
Nominal Impedance 8 Ω
Horizontal Coverage Angle (-6 dB) 100° averaged 400 Hz to 12 kHz
Vertical Coverage Angle (-6 dB) 90° averaged 400 Hz to 12 kHz
Directivity Factor (Q) 7 averaged 400 Hz to 12 kHz
Directivity Index (DI) 8.4 dB averaged 400 Hz to 12 kHz
