HPD9300 | 250W 10" 2WAY CINEMA SURROUND (MUST BE ORDERED IN PAIRS)
HPD9300
250W 10" 2WAY CINEMA SURROUND (MUST BE ORDERED IN PAIRS)
HPD9300
250W 10" 2WAY CINEMA SURROUND (MUST BE ORDERED IN PAIRS)
- UM : EA
- Estimated Weight: 3.0

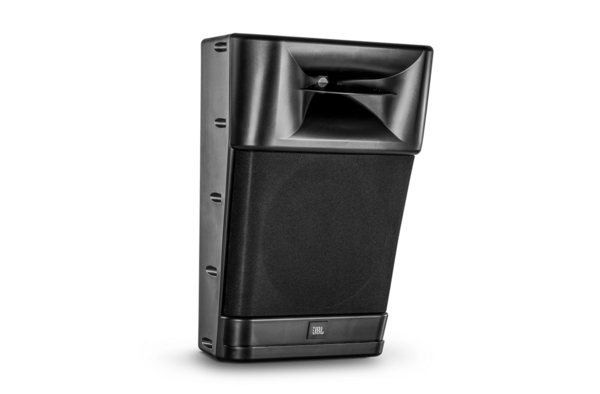

HPD9300 is a two-way passive cinema surround loudspeaker featuring a 25 mm (1 inch) compression driver for high frequencies and a 250 mm (10 inch) woofer with a 50.8 mm (2 inch) voice coil for low frequencies. The loudspeaker supports up to 250W of power handling and includes waveguide and horn designs optimized for precise acoustic pattern control in theater environments.

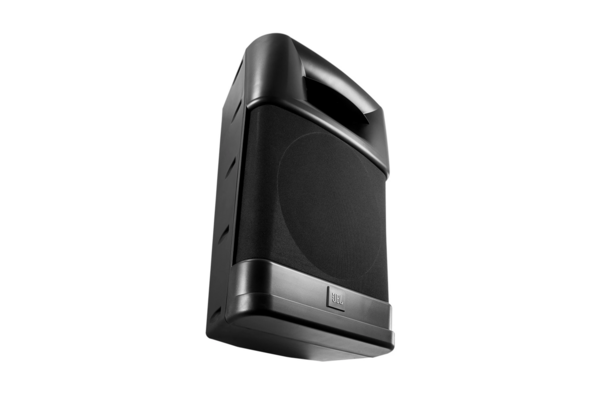

The design incorporates JBL’s Image Control Technology combined with asymmetric wave-shaping techniques, including an integral Wave Shaping Vane, to tailor sound dispersion to room geometry. The enclosure is molded with a black textured finish and includes an open high-frequency horn covered by a black baffle.
Features:
- 250W power handling
- Wave shaping vane for acoustic wave-front
- High frequency horn with precise pattern control
- Three horizontal mounting planes at 15° angles

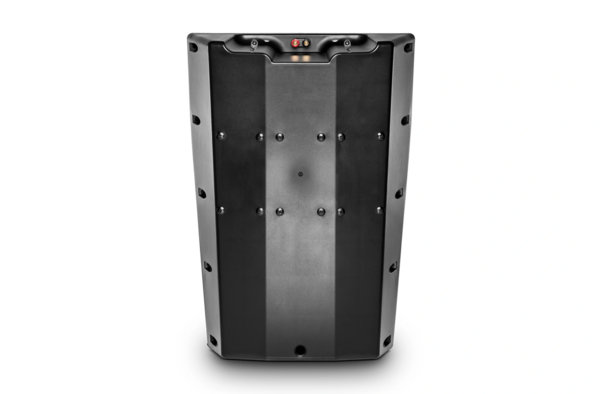

- Input terminals on top for easy access
- Lightweight, rigid molded enclosure
- 60° vertical coverage
- 110° horizontal coverage
| Frequency Response (±3 dB) | 60Hz – 20kHz |
|---|---|
| Frequency Range (-10dB) | 50Hz – 25kHz |
| Coverage Pattern | 110º × 60º asymmetric >2kHz |
| Power Rating | 30v @ 100hrs, 40v @ 2hrs, IEC/Pink 250W continuous pink noise |
| Sensitivity | 96dB |
| Maximum SPL (1m) | 120dB continuous, 126dB peak |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 7Ω @ 200Hz |
| Crossover Frequencies | 2800Hz |
| System Polarity | Woofer (IEC), HF (JBL) |
