HPD9310 | 350W HIGH POWERED 10" 2WAY CINEMA SURROUND (MUST BE ORDERED IN PAIRS)
HPD9310
350W HIGH POWERED 10" 2WAY CINEMA SURROUND (MUST BE ORDERED IN PAIRS)
HPD9310
350W HIGH POWERED 10" 2WAY CINEMA SURROUND (MUST BE ORDERED IN PAIRS)
- UM : EA
- Estimated Weight: 3.0
HPD9310 is a two-way passive cinema surround loudspeaker featuring a 25 mm (1 inch) compression driver for high-frequency output and a 250 mm (10 inch) woofer with a 50 mm (2 inch) voice coil for low-frequency reproduction. The loudspeaker supports a power handling capacity of 350W and is designed to deliver extended bass response with controlled dispersion using integrated waveguide and horn technologies.

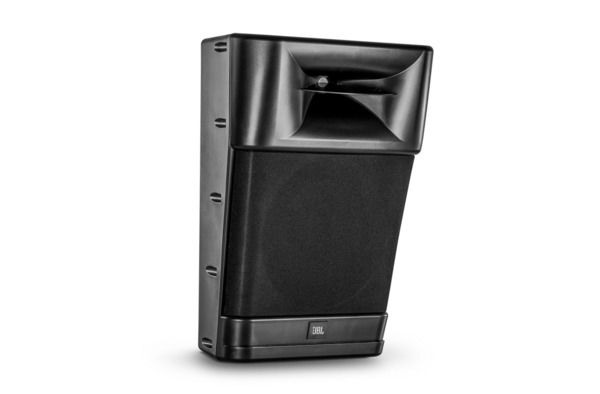

The enclosure is molded with a black textured finish and includes an open high-frequency horn and a black baffle. The design incorporates Image Control Technology and asymmetric wave-shaping techniques, including a Wave Shaping Vane, to optimize acoustic energy distribution and coverage suited to theater environments. The unit is constructed to meet durability standards for extended use in professional applications.
Features:
- 350W power handling
- Wave shaping vane for acoustic energy distribution
- High frequency horn with JBL Image Control Technology
- Three horizontal mounting planes at 15-degree angles
- Input terminals on top of cabinet
- Lightweight construction
- Rigid molded enclosure
- Uniform asymmetric 60-degree vertical coverage
- 110-degree horizontal coverage
| Frequency Range (±3 dB) | 60Hz–20kHz |
|---|---|
| Frequency Range (-10 dB) | 50Hz–25kHz |
| Coverage Pattern | 110º x 60º asymmetric >1kHz |
| Power Rating | 40v @ 100hrs, 48v @ 2hrs, IEC/Pink 350W continuous power |
| Sensitivity | 99dB |
| Maximum SPL (1m) | 124dB continuous, 130dB peak |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 7Ω @ 200Hz |
| Crossover Frequency | 2600Hz |
| Power Handling (2Hr AES Rating) | 350W |
