HPD9350 | 15" HIGH POWERED SURROUND WITH CONFIGURABLE PATTERN
HPD9350
15" HIGH POWERED SURROUND WITH CONFIGURABLE PATTERN
HPD9350
15" HIGH POWERED SURROUND WITH CONFIGURABLE PATTERN
- UM : EA
- Estimated Weight: 3.0

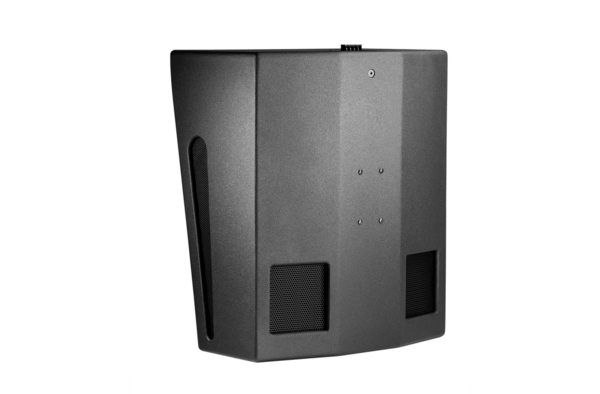

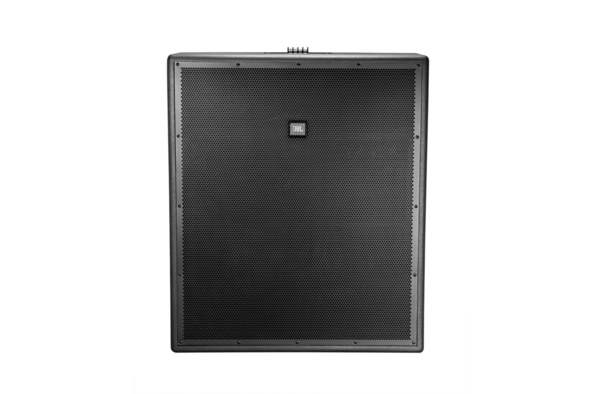

The HPD9350 is a 15-inch loudspeaker designed with a configurable 3-way system that allows adjustment of its vertical and horizontal coverage angles. It incorporates a passive crossover network, waveguide technologies, and line array techniques to provide tailored side or rear sound patterns. Coverage patterns are selectable via a switch to optimize audio dispersion based on installation location, such as rear or side wall placement.
This loudspeaker is engineered to deliver balanced left/right channel output with expanded coverage suitable for theatre environments. The design focuses on precise sound projection and consistent sonic characteristics, making the HPD9350 compatible with front screen loudspeakers in multi-channel audio setups.
Features:

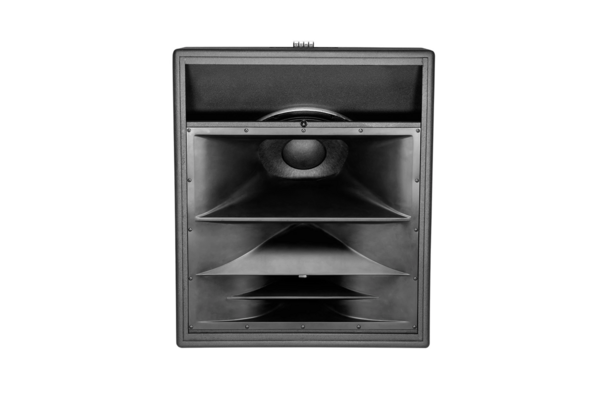

- Line array pattern control with two horns
- Switch for side or rear coverage pattern
- Extends HF output power and pattern control one octave
- Improves midrange performance of 15" woofer
- Smooth crossover transition with tight driver spacing
- Acoustic Divider waveguide creates low frequency Bi-pole
- Reduces wall reflection notching of surrounds
| Frequency Range (±3 dB) | 40 Hz - 18 kHz |
|---|---|
| Power Handling (2Hr AES Rating) | 350W |
| Maximum SPL (1m) | 130 dB continuous, 133 dB peak |
| Horizontal Coverage Angle (-6 dB) | 70° / 120° (Rear/Side) |
| Vertical Coverage Angle (-6 dB) | 50° / 30° (Rear/Side) |
| Configurable Coverage Patterns | SIDE/REAR |
| Nominal Impedance | 8 Ω |
| Sensitivity | 102 dB 1W/1m |
| Crossover Frequency | 2,200 Hz |
| Enclosure Material | Plywood |
