HR-MP2A | DUAL MICROPHONE PREAMPLIFIER
HR-MP2A
DUAL MICROPHONE PREAMPLIFIER
HR-MP2A
DUAL MICROPHONE PREAMPLIFIER
- UM : EA

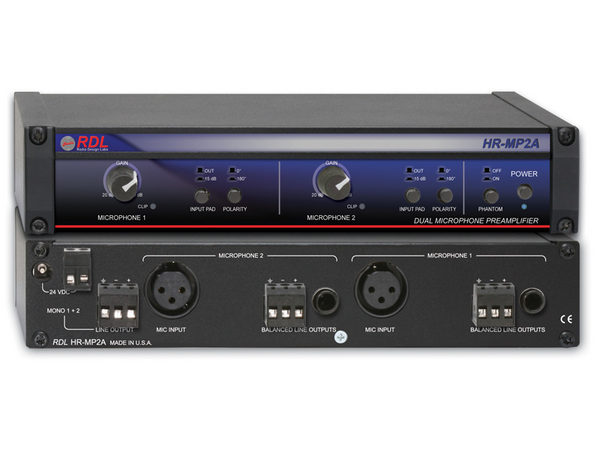

The HR-MP2A is a dual channel microphone preamplifier with line-level outputs. Each section provides identical rear-panel signal connections and front-panel controls.
Each preamplifier is equipped with a front-panel INPUT PAD switch that allows the operator to attenuate the input signal by 15 dB prior to the preamplifier input stage, increasing the maximum input level from +5 dBu (attenuator out) to greater than +20 dBu. A POLARITY switch provides signal polarity reversal if needed. The GAIN control provides continuous adjustment between 20 dB and 60 dB. A CLIP LED flashes if a signal peak is within 3 dB of clipping. The trigger threshold of the CLIP LED is 17 dB above a normal +4 dBu output.
The HR-MP2A offers exceptional input headroom, wide flat frequency response and extremely low noise with very high common-mode signal rejection. Total harmonic distortion and crosstalk are below the noise floor, allowing the HR-MP2A to be operated as a stereo preamplifier or as two separate mono preamplifiers.
Each preamplifier provides two balanced line-level output formats: Detachable terminal block and ¼” TRS. A separate summing amplifier provides a combined mono output on a line-level detachable terminal block. Balanced outputs may be wired unbalanced. The rear panel also provides a detachable terminal block and a power input jack to connect 24 Vdc power.
The HR-MP2A is constructed in a durable half-rack-width shielded metal enclosure for free-standing use or for mounting in an RDL rack adapter, available separately.
Features:
- Two Independent Microphone Preamplifiers
- Balanced XLR Microphone Inputs
- Independent Controls for Each Preamplifier
- Front-Panel 20 to 60 dB Gain Control
- Switch-selectable 48 Volt Phantom
- Switch-Selectable 15 dB Input Pad
- Switch-Selectable Polarity Reversal
- Switch-selectable 48 Volt Phantom for Both Preamplifiers
- CLIP Indicators for Peaks 3 dB Below Clipping
- Balanced Line-Level Outputs
- Each Output Allows Balanced or Unbalanced Connection
- Each Preamp Output on ¼” TRS or Detachable Terminal Block
- Separate Summed Output 1 + 2 on Detachable Terminal Block
| Inputs (2) | XLR (3 pin, rear panel,1=GND, 2+, 3-) |
|---|---|
| Input level (for +4 dBu output) | -56 dBu to 0 dBu (maximum gain without pad, minimum gain with pad) |
| Maximum Input Level | >+5 dBu (input pad disabled), +22 dBu (input pad enabled) |
| Input Impedance | > 1 kΩ balanced |
| Phantom power | Switchable (both preamplifiers) 48 V phantom (IEC 61938: 2013) |
| Input pad (2) | 15 dB nominal (1 per preamplifier) |
| Outputs (5) | Each preamplifier (rear-panel): Detachable terminal block, ¼” TRSMono sum (rear-panel): detachable terminal block |
| Output level | +4 dBu balanced, -4 dBV unbalanced +24 dBu maximum balanced |
| Output Impedance | 150 Ω balanced |
| Channels | 2 (1 and 2 may be used for stereo or as two separate mono preamplifiers) |
| Gain Trim (2) | 20 dB to 60 dB (front panel adjustable one for each preamplifier) |
| Frequency Response | 10 Hz to 70 kHz (± 0.5 dB) |
| THD | Below noise floor |
| CMRR | > 80 dB (50 Hz to 5 kHz) |
| Residual Noise (below +4 dBu output) | <-85 dB (20 Hz to 20 kHz, 40 dB gain, 150 Ω source) <-70 dB (20 Hz to 20 kHz, 60 dB gain, 150 Ω source) |
| Crosstalk | Below noise floor |
| Indicators (3) | POWER LED (blue), CLIP (2, red) |
| Power Requirement | 24 Vdc @ 165 mA (190 mA with phantom), Ground-referenced |
| Mounting | Rack-mount using optional rack adapters such as HR-RA2 or operate free-standing (feet included) |
| Dimensions | Height: 1.7 in, 4.3 cm Length: 8.6 in, 20.6 cm Depth: 4.59 in, 11.66 cm |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 2.32 lbs. |
| Shipping Weight | 2.68 lbs. |
| Package Dimensions | 9.5 x 7 x 2.25 in. |
