HXII-KB-X4 | 4-GANG FLUSH-MOUNTABLE USER STATION.

  • MAP: $2,060.00 / EA
  • List Price: $2,060.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4-GANG FLUSH-MOUNTABLE USER STATION.
4-GANG FLUSH-MOUNTABLE USER STATION.
Click image to enlarge
4-GANG FLUSH-MOUNTABLE USER STATION.
4-GANG FLUSH-MOUNTABLE USER STATION.

HXII-KB-X4
4-GANG FLUSH-MOUNTABLE USER STATION.

  • UM : EA

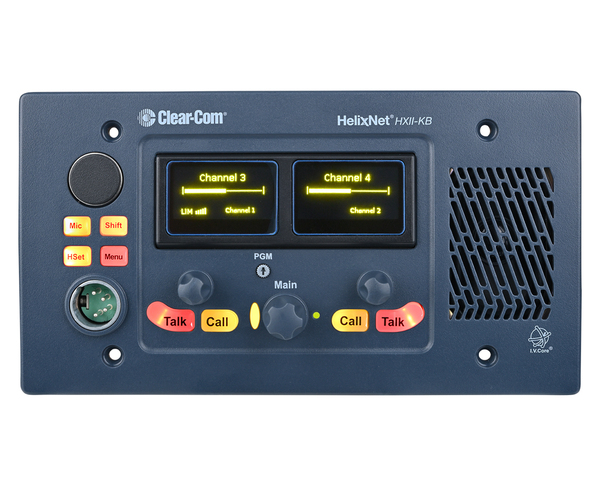

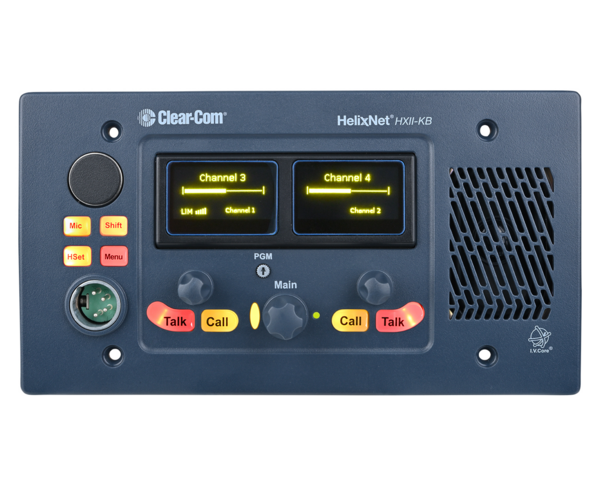

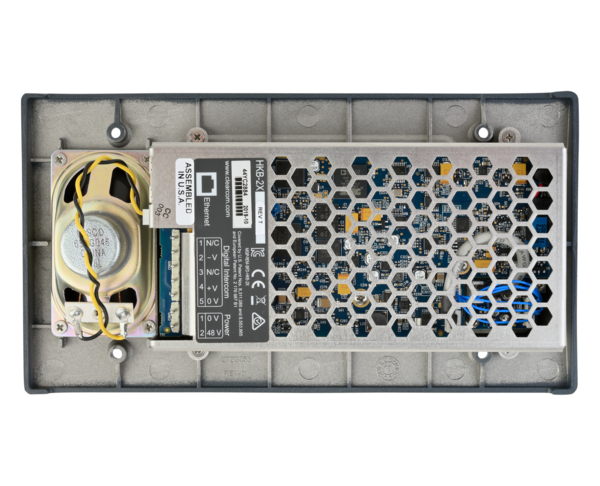

The HXII-KB-X4 is a 4-gang flush-mountable speaker station designed for user interaction.

Features:

  • Easy to use front panel with OLED displays and backlit keys
  • Headset or hands-free support with speaker and mic
  • 2 keysets assignable to channels
  • Shift page for 4-channel operation
  • Program audio level control
  • Display swivels for optimal viewing angles
  • Ethernet network port with PoE
  • Powerline terminal plug
  • 4-gang for flush mounting
  • Optional enclosure for desktop use
  • Wired Partyline - Networked
  • Up to 24 channels – licensed
  • Up to 64 or 128 HelixNet endpoints
  • Easy to use CCM browser configuration
  • Central firmware upgrades from host
Powerline Connectors Terminal Block 5 pole, 5mm pitch
Ethernet/PoE Connectors RJ45
Headset Connectors 4-pin XLR-M or 7-pin XLR-M with (2) PTT GPI (-X7)
Gooseneck Mic Connectors 3-pin Tuchel
Headset Mic Impedance 200Ω (Dynamic)
Limiter+23dB
