HYD200 | HYDRO SPOT 1; 200 WATT, IP65 FEATURE-PACKED, LED-POWERED MOVING HEAD SPOT LUMINAIRE

HYD200
HYDRO SPOT 1; 200 WATT, IP65 FEATURE-PACKED, LED-POWERED MOVING HEAD SPOT LUMINAIRE

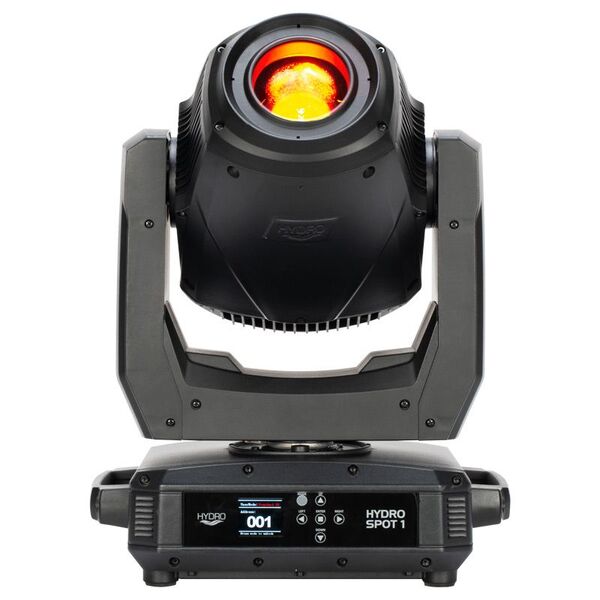

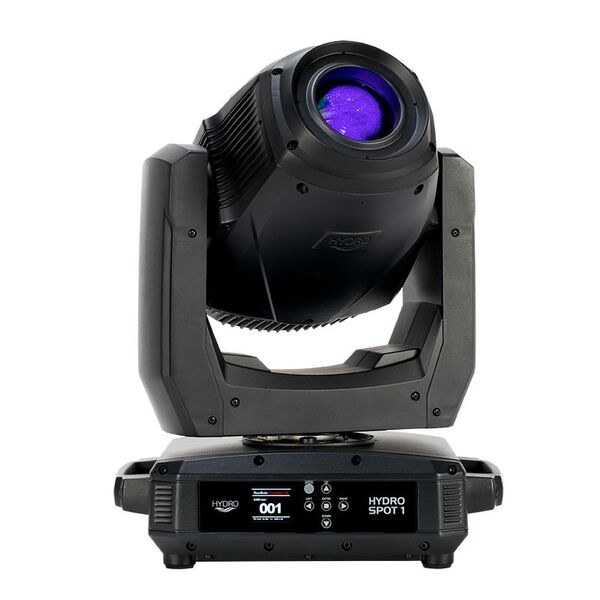

The ADJ Lighting Hydro Spot 1 is a feature-packed, LED-powered moving head spot luminaire housed within a robust IP65-rated housing. Featuring a potent 200-Watt cool white LED engine, it delivers punchy output which can be manipulated using an extensive collection of beam-shaping tools. These include motorized zoom (for a beam angle of 12° ~ 23°), motorized focus, two frost filters (light and heavy), two rotating prisms (5-facet linear & 6-facet circular), 6 rotating and replaceable GOBOs, and two color wheels (each with 8 options).

Light Source:

• 200W Cool White LED Engine (50,000 hr.)



Features:

• Wifly EXR (Wireless DMX)

• Motorized Focus

• Motorized Zoom: 12° ~ 23°

• 2 Frost Filters (Heavy and Medium)

• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

• 0-100% smooth dimming

• Various strobe speeds

• 2 cooling fans



Color Wheels:

• (2) Color wheels

• 8 dichroic colors + white on each wheel (includes CTO, CTB and UV filters)



 GOBO Wheels:

• (1) Wheel with 6 Rotatable GOBOs

• All GOBOs are replaceable

• GOBO Shake Effect

• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

• Glass GOBO size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)



Prism Wheel:

• Prism Wheel 1: Rotatable 6-facet Circular

• Prism Wheel 2: Rotatable 5-facet Linear

• Both Prisms are indexable



Frost Filters:

• Frost 1: Heavy frost for wash effect

• Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX



Control:

• 3 DMX Channel Modes: 17/20/22

• Wifly EXR (Wireless DMX)

• Color LCD display with 6-button function menu

• Control Mode: DMX512 or internal programs

• 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2

• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve

• Selectable LED Refresh Rates (900 Hz~25K Hz)

• 0-100% smooth dimming

• Various strobe speeds

• RDM (Remote Device Management)

• With Wired Digital Communication Network



Pan/Tilt:

• Pan: 630 degrees

• Tilt: 270 degrees

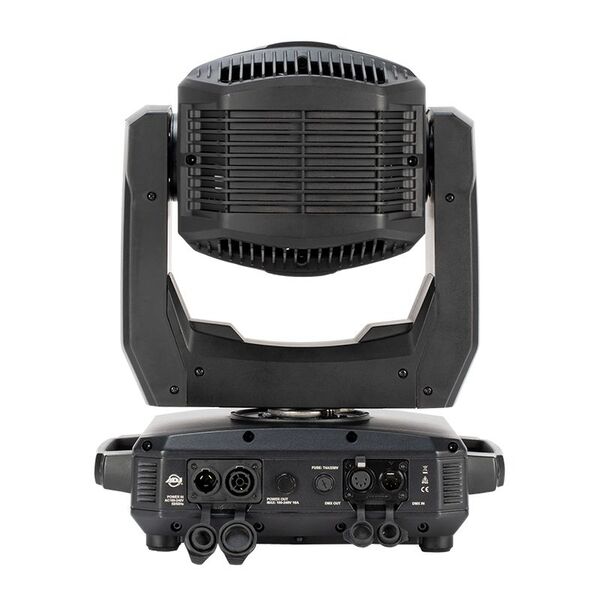

Connections:

• DMX Connections: 5-pin XLR In/Out

• Power Connections: IP65 PowerLock In/Out to daisy chain power



Electrical:

• Multi-voltage operation: 90-240V, 50/60Hz

• Max power consumption: 280W

• Min/Max Ambient Temperature: -20ºC ~ 45ºC



Dimensions & Weight:

• Dimensions (LxWxH): 9.4" x 14.1" x 19.2" (239x357x488.2mm)

• Weight: 35.2lbs (16kg)



What’s Included:

• Omega Bracket

• 1.83M locking power cable



Approvals / Rating:

ETL Approved / CE Certified

IP65 with Marine Coated Exterior and conformal coated PCBs
