IP-A1PA12 | IP POWER AMPLIFIER 12W,EQUIPPED WITH 25 V, 70 V AND 100 V SPEAKER LINE OUTPUTS

  • MAP: $894.00 / EA
  • List Price: $1,106.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
IP POWER AMPLIFIER 12W,EQUIPPED WITH 25 V, 70 V AND 100 V SPEAKER LINE OUTPUTS

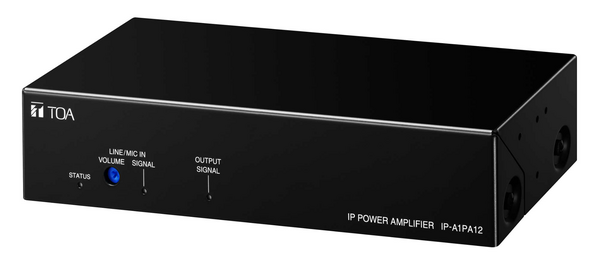

Click image to enlarge

IP-A1PA12
IP POWER AMPLIFIER 12W,EQUIPPED WITH 25 V, 70 V AND 100 V SPEAKER LINE OUTPUTS

  • UM : EA

The IP-A1PA12 is a compact 12 W amplifier which is designed to amplify audio signals received through network. It is equipped with 25 V, 70 V and 100 V speaker line outputs to drive wide range of high impedance speakers. With an external amplifier input capability, speaker(s) can be driven by internal amplifier or external amplifier by switching over. It allows integrations with IP camera systems by using ONVIF protocol, paging from IP phone systems by using SIP protocol and group broadcast by multicast streaming. Max. 20 audio files can be registered and they can be played back by control inputs or remote API (HTTP) commands.

Features:

  • 12W amplifier to drive 100/70/25V line speakers
  • Receive SIP audio, ONVIF Audio and Multicast
  • Local broadcast using internal audio files or local audio source
  • External amplifier input (100/70/25V) to share speakers between the built-in amplifer and external PA amplifier to be switched over
  • 1 audio input (LINE/MIC selectable, phantom power On/Off)
  • 2 control inputs, 1 control output and 1 mute control input
  • HTTP commands (receive)
  • Audio file storage (20 files, total 80MB, WAV/MP3)
  • Playback programs (Repeat, Weekly Timer)
  • PoE+ powered
Power Source PoE+ (IEEE802.3at Class 4)
Power Consumption 25 W (rated output)
6 W (IEC62368-1)
Amplifier Rated Output 12 W
Frequency Response 100 Hz - 20 kHz
Audio Codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Audio Delay Time Min. 100 ms (*1)
Broadcasting Mode SIP Broadcasting/SIP calling Mode: Opus/PCMU/PCMA/G.722, P2P/SIP Server Connection
Multicast Broadcasting Mode: Opus/PCMU/PCMA/G.722 Auto codec recognition, 20 ports
VMS Broadcasting Mode: PCMU
Internal Message Broadcasting Mode
Local Broadcasting Mode: Output from LINE/MIC IN to SPEAKER OUT
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
Sound Source Files Max. 20 files (File storage capacity: 80 MB total)
Supported file formats
WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 sec) or Timer (from Start time to End time)
Interval time: 0 - 60 sec, Delay time: 0 - 30 sec
Trigger: Control Input or Remote API (HTTP)
Network I/F 100BASE-TX, Auto MDI/MDI-X, RJ45
Network Protocol TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)
Audio Input 1 channel, electronically-balanced, 10 kOLINE/MIC selectable (Rated input: LINE: 0 dB (*2), MIC: -60 dB (*2)PAD function (-20 dB (*2), Phantom power ON/OFF (12 V DC), volume adjustable removable terminal block (6 pins)
Audio Output 1 channel, electronically-balanced, 600 O or lessRated input: 0 dB (*2), removable terminal block (6 pins)
Speaker Output High impedance 100 V line (830 O), 70 V line (420 O), 25 V line (52 O)N (100 V), N (70 V/25 V switchable), R, C removable terminal block (4pins)
External Amplifier Input High impedance 100 V line, 70 V line, 25 V lineN (100 V), N (70 V/25 V switchable), R, C removable terminal block (4pins)
Amplifier Switching Control Relay switchingSwithced to external amplifier when the following functions and operations are activated:mute control input, control input, system mute, remote API control and the unit power off.
Control Input 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)
Mute Control Input 1 channel, 24 V DC cut signal, control current: 5 mA or less, removable terminal block (2 pins)
Control Output 1 channel, open collector output, withstand voltage: 30 V DC, control current: 150 mA or less, removable terminal block (6 pins)
Indicator STATUS (green/blue/yellow/red), LINE/MIC IN (green/red), OUTPUT (green), LINK/ACT (green)
Clock Accuracy ±13 seconds per month
Time Adjustment Manual time setting, Time adjustment by NTP server
Power Outage Protection Period 24 hours (RTC time retention, at 40 °C (104 °F)
Operating Temperature -30 °C to +55 °C (-22 °F to 131 °F)
Operating Humidity 90 %RH or less (no condensation)
Finish Front case: Surface-treated steel plate, black, paintRear chassis: Surface-treated steel plate
Dimensions 210 (W) x 44 (H) x 81.5 (D) mm (8.27" x 1.73" x 3.21") (excluding projection)
Weight 940 g (2.07 lb)
Included Accessories Removable terminal plug (6 pins, preinstalled on the unit) x 2, Removable terminal plug (2 pins, preinstalled on the unit) x 1, Rubber feet x 4, Mounting screw (M3 x 6) x 4
Optional Accessories Rack mounting bracket: MB-15B-BK (for rack mounting one IP-A1PA12 unit) (*3)Wall mounting bracket: MB-15B(for wall mounting)
