IP-A1RM | IP REMOTE MICROPHONE,BUILT-IN COMPRESSOR,ALLOWS BOTH INDIVIDUAL AND GROUP BROADCAST
IP-A1RM
IP REMOTE MICROPHONE,BUILT-IN COMPRESSOR,ALLOWS BOTH INDIVIDUAL AND GROUP BROADCAST
IP-A1RM
IP REMOTE MICROPHONE,BUILT-IN COMPRESSOR,ALLOWS BOTH INDIVIDUAL AND GROUP BROADCAST
- UM : EA

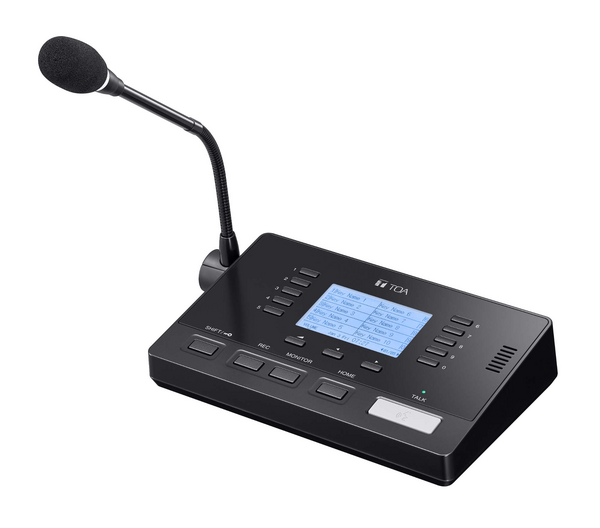

The IP-A1RM is an IP remote microphone which is designed to make audio broadcasts to IP-A1 series receiving devices via network. It achieves clear microphone announcements without distortion thanks to its built-in compressor effect. It allows both individual and group broadcast so that single or multiple IP-A1 series receiving device(s) can receive the audio as flexible PA operation. Key button operation controls a variety of functions such as internal audio file playback, HTTP command set transmission and physical control outputs to control external devices.
Features:
- Angle adjustable gooseneck microphone with compressor effect
- 10 function-assignable keys to initiate broadcasts or controls
- GUI calendar scheduler function (up to 2,000 settings)
- System mute function to mute all broadcasts made by every single IP-A1 series devices within the same network
- 1 AUX audio input (LINE/MIC selectable, phantom power On/Off)
- 2 control inputs, 1 control output and 1 mute control input
- Independent volume control for microphone and AUX input
- HTTP commands (send/receive)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- PoE powered
| Power Source | PoE(IEEE802.3af Class 3) |
|---|---|
| Power Consumption | 3.5 W |
| Audio Transmission Method | SIP broadcasting: Unicast Audio Streaming Group broadcasting: Multicast Audio Streaming |
| Audio Codec | Opus, PCMU (G.711u), PCMA (G.711a), G.722 |
| Network I/F | 100BASE-TX, Auto MDI/MDI-X, RJ45 |
| Network Protocol | TCP/IP, UDP, HTTP, RTP, RTCP, ARP, ICMP, NTP, SIP (RFC3261) |
| Microphone | Unidirectional electret condenser microphone (With microphone indicator and microphone volume control) |
| AUX Input | 1 channel, unbalanced, 10 kO LINE/MIC selectable (Rated input: LINE: 0 dB (*1), MIC: -60 dB (*1) PAD function (-20 dB (*1), AUX volume adjustable, Ø3.5 mm mini jack |
| Monitor Speaker | Cone-type speaker, Speaker volume adjustable, Rated Output: 1 W |
| Control Input | 2 channel, no-voltage make contact inputs, open voltage: 5V DC, short-circuit current: 2 mA or less, push-in terminal block |
| Mute Control Input | 1 channel, 24 V DC cut signal, control current: 5 mA or less, push-in terminal block |
| Control Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 150 mA or less, push-in terminal block |
| Operation | Operation key: TALK, HOME, REC, MONITOR, SHIFT/KEY LOCK Function key: VOLUME, RIGHT, LEFT Selection key: 0 - 9 |
| Indicator | LCD display: 3 (255 x 160 dots) with backlightIndicator: Status indicator (green/blue/yellow/red), Microphone indicator (blue), LINK/ACT indicator (green |
| Clock Accuracy | ±13 seconds per month |
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
| Power Outage Protection Period | 24 hours (RTC time retention, at +40 °C (104 °F) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | ABS resin, black, paint |
| Dimensions | 224 (W) x 47.2 (H) x 136 (D) mm (8.82" x 1.86" x 5.35") (excluding microphone) |
| Weight | 630 g (1.39 lb) |
| Included Accessories | Zip tie x 2 |
| Optional Accessories | Wall mounting bracket: WB-RM500 |
