IP-HT47 | 4W AUDIO TRANSFORMER KIT, FOR USE WITH IPX ACTIVE ENDPOINTS

  • MAP: $61.99 /
  • List Price: $75.99 /
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4W AUDIO TRANSFORMER KIT, FOR USE WITH IPX ACTIVE ENDPOINTS
4W AUDIO TRANSFORMER KIT, FOR USE WITH IPX ACTIVE ENDPOINTS
Click image to enlarge
4W AUDIO TRANSFORMER KIT, FOR USE WITH IPX ACTIVE ENDPOINTS
4W AUDIO TRANSFORMER KIT, FOR USE WITH IPX ACTIVE ENDPOINTS

IP-HT47
4W AUDIO TRANSFORMER KIT, FOR USE WITH IPX ACTIVE ENDPOINTS

  • UM :

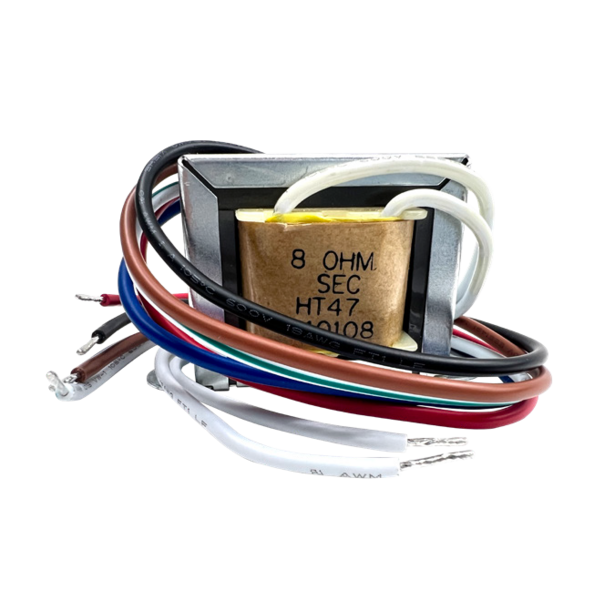

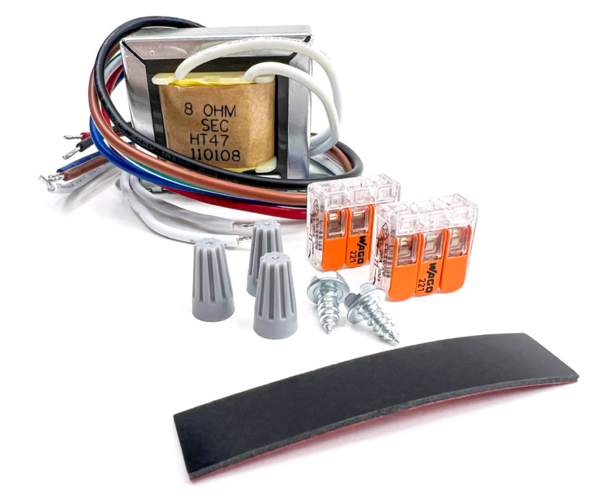

The AtlasIED IP-HT47 is an impedance matching transformer kit for use with most IPX Audio or Visual IP endpoints. The kit allows an IP endpoint to provide extended audio coverage utilizing two or more 70V external loudspeakers. The kit includes everything needed to retrofit an existing IP endpoint.

Features:

  • Low insertion loss transformer
  • WAGO 221 series wire nuts
  • All installation hardware included
Frequency Response (+/- 1dB)60Hz - 12kHz
Power Taps0.5, 1, 2, 4 Watts
Insertion Loss1.0dB
Maximum Power Rating4 Watts
Current Rating20A
Voltage Rating600V
Warranty Period60 months from date of purchase
