IPCSD4 | DANTE™ 4 BUTTON PROGRAMMABLE DIGITAL MICROPHONE STATION WITH HAND HELD MIC
IPCSD4
DANTE™ 4 BUTTON PROGRAMMABLE DIGITAL MICROPHONE STATION WITH HAND HELD MIC
IPCSD4
DANTE™ 4 BUTTON PROGRAMMABLE DIGITAL MICROPHONE STATION WITH HAND HELD MIC
- UM : EA

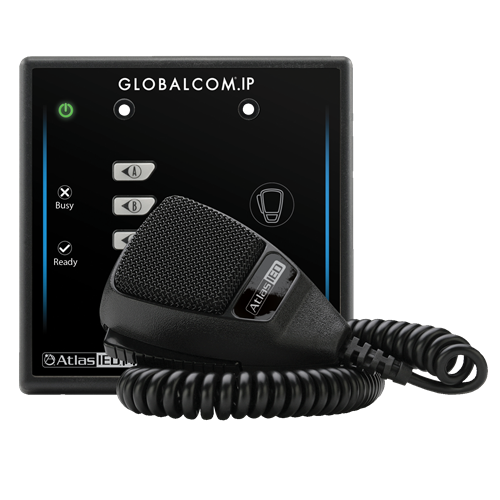

The IPCSD4 digital microphone station is a 4-button device for initiating audio / visual announcements, messages and pages with the GLOBALCOM.IP IP108-D or IP116-D Announcement Control Systems. The IPCSD4 uses a single Ethernet interface for audio and control data. The IPCSD4 is fully compatible with IEEE 802.3af standard for Power over Ethernet (PoE), allowing the microphone station to be powered directly from any standard off-the-shelf PoE switch.
The IPCSD4 utilizes Dante technology for transporting high-quality, low-latency digital audio over Ethernet. The IPCSD4 microphone station may be used for emergency evacuation and life safety systems. Instead, in a dual-use system, these microphone stations may be used for everyday paging functions.
It is compatible with IP108-D or IP116-D ACS Controllers with Dante capability.
Desk mounting for the IPCSD4 is available with the optional IEDA520DTB desktop base.
Features:
- Immediate Digitization of Full Bandwidth Audio
- Digital Audio Transmission Over Standard Ethernet Connection
- Mounts Using Standard 1- or 2-Gang Electrical Box
- Power, Busy, and Ready LED Indicators
| Frequency Response | +2dB, -5dB (22Hz - 22kHz, Input Level) |
|---|---|
| Total Harmonic Distortion | <1.0% (22Hz - 22kHz, Input Level) |
| Signal to Noise Ratio | >85dB (22Hz - 22kHz, Input Level) |
| Sample Rate | 48kHz |
| Compression Threshold | -14dBu |
| Operating Temperature Range | +32˚F to +104˚F (0˚C to +40˚C) |
| Dimensions | 4.95" W x 4.95" H x 1.9" D |
| Analog-to-Digital Converter, A/D | 24 Bit |
| Storage Temperature Range | –40˚F to +158˚F (–40˚C to +70˚C) |
| Supply Voltage | 48VDC |
| Power Consumption | < 4W |
| Warranty Period | 36 months from date of purchase |
