IPD-SM52-EZ-WX-BK | DANTE ENABLED 5.25" 2-WAY WEATHER EXTREME SUFACE MOUNT SPEAKER - BLACK
IPD-SM52-EZ-WX-BK
DANTE ENABLED 5.25" 2-WAY WEATHER EXTREME SUFACE MOUNT SPEAKER - BLACK
IPD-SM52-EZ-WX-BK
DANTE ENABLED 5.25" 2-WAY WEATHER EXTREME SUFACE MOUNT SPEAKER - BLACK
- UM : EA
- Estimated Weight: 8.0

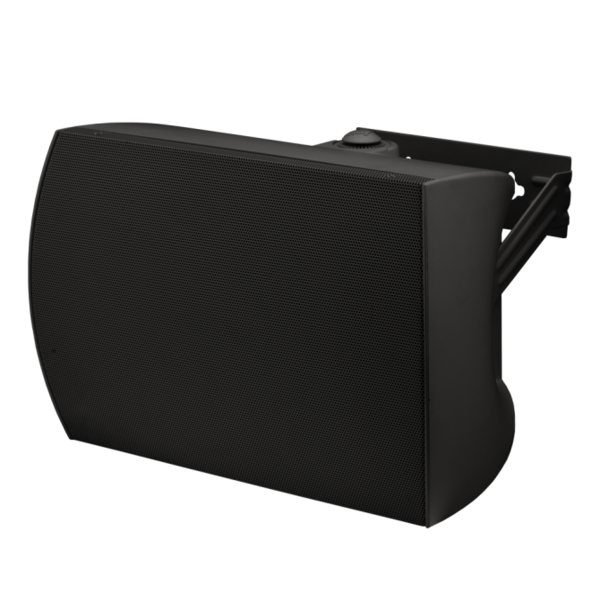

SoundTube IPD-SM52-EZ-WX IP-Addressable Speaker in Black
The IPD-SM52-EZ-WX is a Dante-enabled, weather resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating: IP65. Included accessories: Safety cable, wall mount bracket, conduit connector and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.
*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use. Also: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
|
Color |
Black |
|
UPC |
752830447585 |
|
Manufacturer |
SoundTube |
|
Manufacturer's Category |
STNet IP-Addressable and Dante Series |
|
Depth |
6.63 in / 168.4 mm |
|
Height |
11.88 in / 301.75 mm |
|
Width/Diameter |
7.5 in / 190.5 mm |
|
Shipping Weight |
7.8 lbs / 3.54 kg |
|
Carton Height |
12 in / 304.8 mm |
|
Carton Length |
15 in / 381 mm |
|
Carton Width |
10.5 in / 266.7 mm |
|
Certifications |
CE, IP65, RoHS, UL60065 |
|
Included Accessories |
Mounting Hardware, Port Plug, Safety Cable |
|
Source Inputs |
RJ45 Ethernet Port |
|
IP Rating |
IP65 |
|
TAA Compliant (Trade America) |
No |
|
BAA Compliant (Made in USA) |
No |
|
Coverage Angle (±6dB @ 2kHz) |
91° Horizontal / 120° Vertical |
|
Crossover Frequency |
3.5 kHz |
|
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) |
6.9 and 5.9 |
|
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) |
5.2 and 7.7 |
|
Frequency Response (± 10 dB) |
55 Hz - 20 kHz | Sealed: 62 Hz - 20 kHz |
|
Frequency Response (± 3 dB) |
65 Hz - 20 kHz | Sealed: 80 Hz - 20 kHz |
|
Grille Properties |
Aluminum, Black, Powder-Coated |
|
Low Frequency Voice Coil |
25.4 mm (1") high temperature Kapton |
|
Max SPL @ 1M |
97 dB |
|
Tweeter Driver |
1" Soft Dome |
|
Woofer Driver |
5.25" Polypropylene Cone w/ Butyl Rubber Surround |
