IPFLEXEXT15FT | IP RATED POWER AND DATA EXTENSION, 15 FT FOR EPIX FLEX SERIES
IPFLEXEXT15FT
IP RATED POWER AND DATA EXTENSION, 15 FT FOR EPIX FLEX SERIES

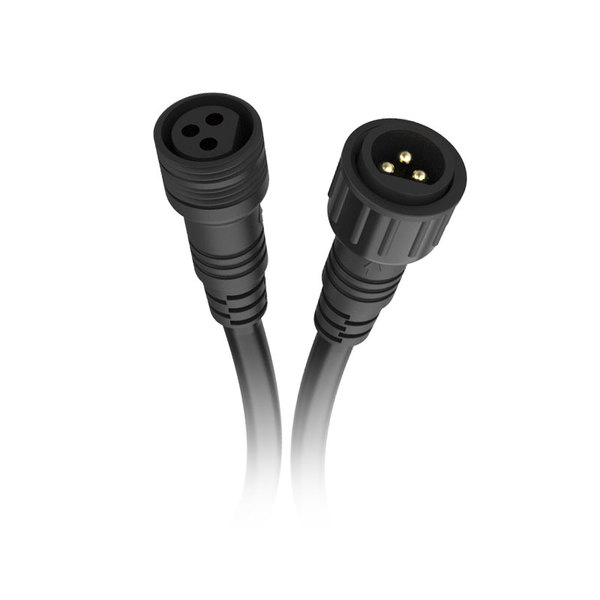

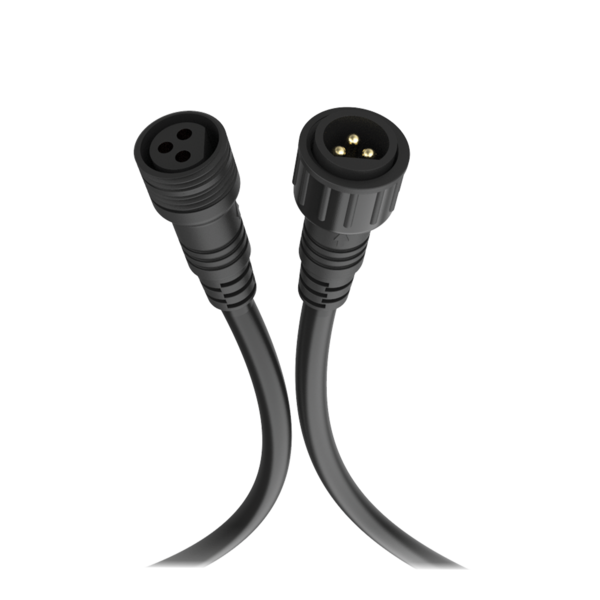

Click image to enlarge
IPFLEXEXT15FT
IP RATED POWER AND DATA EXTENSION, 15 FT FOR EPIX FLEX SERIES
- UM : EA
- Estimated Weight: 16.0
3-pin IP67-rated FLEX extension cable with locking connectors. Available in four lengths. Ships in bag with header card.
Features:
- Delivers superior weather protection with an IP67 rating for reliable performance in any environment.
- Ensures stable power and data transmission with robust 3-pin locking connectors.
- Combines power and data into a single cable to streamline complex lighting setups.
- Engineered for seamless integration with the CHAUVET Professional ÉPIX Flex series.
- Available in four lengths to provide versatile solutions for system design and layout.
- Extends system reach without signal degradation, ensuring consistent fixture performance.
| Connector | 3-pin IP FLEX connector |
|---|---|
| Cables Lengths Offered | 5 ft (1.5 m), 15 ft (4.57 m), 25 ft (7.62 m), 50 ft (15.24 m) |
| Cable size | (3) (SJTW) 16 AWG Stranded |
| Conductors | Black DC+, White DC-, Green DATA |
| Conductors twisted | Yes |
| Jacket thickness (outer) | 0.61mm |
| Jacket thickness (each internal wire) | 0.69mm |
| Jacket material | PVC |
| Jacket type | Flexible rubber (black) |
| Wire impedance | 0.762 MΩ / kilometer |
| Outer jacket diameter | 8.15mm to 8.45mm |
| Temperature rating | -40 °F to 221 °F (-40 °C to 105 °C) |
| Shielded | No |
| IP Rating | IP67 |
×
