IPFLEXEXT5FT | IP RATED POWER AND DATA EXTENSION, 5 FT FOR EPIX FLEX SERIES
IPFLEXEXT5FT
IP RATED POWER AND DATA EXTENSION, 5 FT FOR EPIX FLEX SERIES
Click image to enlarge
IPFLEXEXT5FT
IP RATED POWER AND DATA EXTENSION, 5 FT FOR EPIX FLEX SERIES
- UM : EA
- Estimated Weight: 13.0

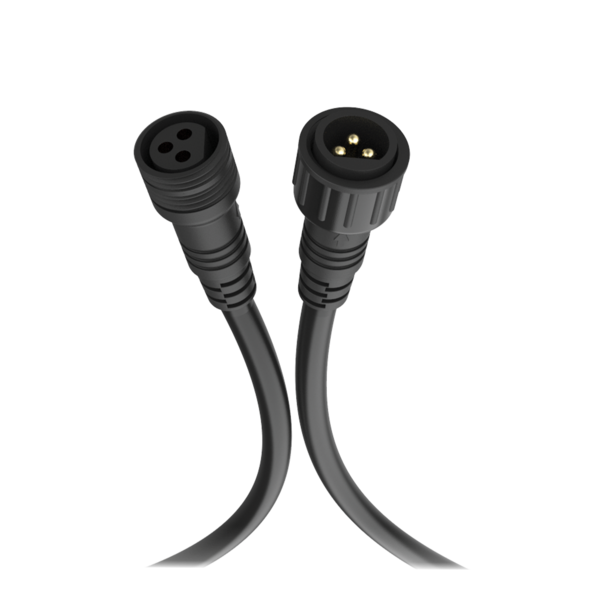

3-pin IP67-rated FLEX extension cable with locking connectors. Available in four lengths. Ships in bag with header card.
Features:
- Delivers superior weather protection with an IP67 rating for reliable performance in any environment.
- Ensures stable power and data transmission with robust 3-pin locking connectors.
- Combines power and data into a single cable to streamline complex lighting setups.
- Engineered for seamless integration with the CHAUVET Professional ÉPIX Flex series.
- Available in four lengths to provide versatile solutions for system design and layout.
- Extends system reach without signal degradation, ensuring consistent fixture performance.
| Connector | 3-pin IP FLEX connector |
|---|---|
| Cables Lengths Offered | 5 ft (1.5 m), 15 ft (4.57 m), 25 ft (7.62 m), 50 ft (15.24 m) |
| Cable size | (3) (SJTW) 16 AWG Stranded |
| Conductors | Black DC+, White DC-, Green DATA |
| Conductors twisted | Yes |
| Jacket thickness (outer) | 0.61mm |
| Jacket thickness (each internal wire) | 0.69mm |
| Jacket material | PVC |
| Jacket type | Flexible rubber (black) |
| Wire impedance | 0.762 MΩ / kilometer |
| Outer jacket diameter | 8.15mm to 8.45mm |
| Temperature rating | -40 °F to 221 °F (-40 °C to 105 °C) |
| Shielded | No |
| IP Rating | IP67 |
×
