IVX-577135 | INTELLIVOX V-90 MKII, SPECIAL COLOR] - EN54:24

  • MAP: $3,290.00 / EA
  • List Price: $3,290.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
INTELLIVOX V-90 MKII, SPECIAL COLOR] - EN54:24
Click image to enlarge

IVX-577135
INTELLIVOX V-90 MKII, SPECIAL COLOR] - EN54:24

  • UM : EA

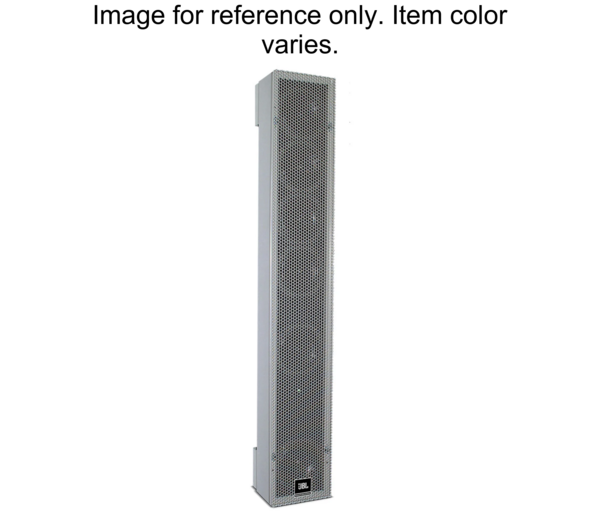

The IVX-577135 loudspeaker features a preset vertical opening angle with a -4º steering angle, designed for flat mounting on vertical surfaces to optimize coverage of the listening plane. This configuration minimizes incoherent reflections from the mounting surface. The speaker can be mounted vertically or recessed, reducing its visual impact in architectural settings.

The IVX-577135 is compliant with EN 54-24 standards for life safety applications. It is suitable for use in transport hubs, places of worship, atriums, shopping centers, and other reverberant environments requiring clear speech reproduction.

Frequency Range 220 - 10k Hz (+/-3 dB), 120 - 12k Hz (-10 dB)
Sensitivity 80 dBSPL (1 W / 4 m)
Maximum SPL 100 dBSPL (100 W / 4 m)
Coverage Angle Vertical 30º, Horizontal 130º
Rated Impedance 100 Ω (100 W tap), 200 Ω (50 W tap), 400 Ω (25 W tap)
Rated Noise Power 100 W rms (100 W tap)
Control switches Tap setting (100 W / 50 W / 25 W), Highpass filter (HPF active / Flat), Correction EQ (EQ active / Flat)
Pilot tone detection Green LED indicator, Frequency range 20k - 23k Hz, Minimum level 6 Vrms
Suggested amplifiers JBL 100 V IndustryAmp series
Outdoor Capability EN 54-24 Type B
