JBL-GSF3-GN | GROUND-STAKE 3" FULL-RANGE LANDSCAPE LOUDSPEAKER, IP66 / 60W - HUNTER GREEN

  • MAP: $191.00 / EA
  • List Price: $237.93 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 2
  • Sign In or Submit RFQ for accurate lead times
GROUND-STAKE 3" FULL-RANGE LANDSCAPE LOUDSPEAKER, IP66 / 60W - HUNTER GREEN
Click image to enlarge

JBL-GSF3-GN
GROUND-STAKE 3" FULL-RANGE LANDSCAPE LOUDSPEAKER, IP66 / 60W - HUNTER GREEN

  • UM : EA
  • Estimated Weight: 5.0

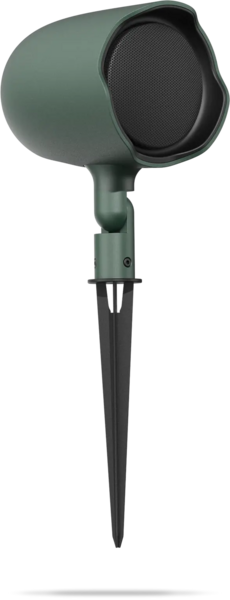

The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

Features:

  • Transducers: 83 mm (3”) woofer with polypropylene cone and 25 mm (1”) voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.
  • Frequency range: 74 Hz – 20 kHz
  • Power handling (at 8Ω setting):  30W continuous pink noise, 60W continuous program
  • IP66 rated against water and dust ingress
  • Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
  • Bottom drip hole provides drainage for drivers
  • Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
  • Aimable via adjustable hinge
  • Includes ground stake and L-bracket for surface mounting
  • Includes tap selector located on bottom of speaker, away from water incursion
Frequency Range (-10dB) 74 Hz – 20 kHz
Frequency Response (+/-3 dB) 120 Hz – 15 kHz
Power Rating 60 W Continuous Program (2 hrs)30 W (120 W Peak), Continuous Pink Noise (2 hrs)20 W (80 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity 84 dB (43 Hz - 110 Hz)
Maximum SPL 103 dB peak (95 dB continuous, 2 hr) @ 1m
Coverage Pattern 90° conical
Nominal Impedance 8 Ω (at 8Ω tap)
Transformer Taps 70V: 15 W, 7.5 W, 3.75 W100V: 15 W, 7.5 W
Drivers 83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton voice coil former20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton voice coil former
Terminals Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
Enclosure Material Polycarbonate + ABS, UL94V-0 flammability rated
Color Pine Green RAL 6028
Dimensions Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base
Net Weight 1.7 kg (3.8 lbs)
Included Accessories (1) Ground Stake Bracket
(1) L-Bracket
Directivity Factor (Q) 7.9
Directivity Index (dB) 9 dB
