JBL-PRX935 | PROFESSIONAL POWERED THREE-WAY SINGLE 15-INCH PA LOUDSPEAKER
JBL-PRX935
PROFESSIONAL POWERED THREE-WAY SINGLE 15-INCH PA LOUDSPEAKER
JBL-PRX935
PROFESSIONAL POWERED THREE-WAY SINGLE 15-INCH PA LOUDSPEAKER
- UM : EA

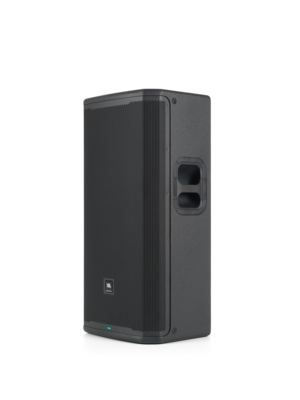

The JBL PRX935 is a powered, three-way portable PA system featuring a single 15-inch woofer. It incorporates advanced acoustics and a comprehensive digital signal processing (DSP) suite, including a 12-band parametric equalizer and dbx Automatic Feedback Suppression. System control is available via an onboard color LCD or through the JBL Pro Connect app, which supports management of mixer and DSP settings on up to 10 connected devices via Bluetooth Low Energy (BLE).
The enclosure is constructed from 18 mm birch plywood with optimized internal bracing to enhance low-frequency response and durability. The system’s design meets rigorous industry test and validation standards. The PRX935 is intended for applications requiring high-power, mid-frequency clarity, and includes a seven-year warranty.
Features:
- 916G 15" ferrite magnet woofer
- 196H 6" ferrite magnet transducer
- JBL 2408H-2 1.5" poly-annular diaphragm compression driver
- Updated JBL image control waveguides for improved dispersion
- FEA flared port design reduces air noise and distortion
- Low-noise, low-distortion gain staging design
- Lightweight, efficient Class D amplification
- Power: 2000W peak / 1000W RMS
- Frequency response: 40 Hz - 20 kHz @4pi (-10 dB), 46 Hz - 18 kHz @4pi (-3 dB)
- Dispersion: 90° x 50°
- Max SPL: 136.1 dB
- Crossover frequency: 542 Hz; 2100 Hz
- Color LCD screen for DSP access
- DriveRack Technology with Automatic Feedback Suppression, system limiter, speaker delay
- Optimized presets for full-range and subwoofer pairing
- JBL Pro Connect app controls up to 10 speakers
- 18 mm birch cabinet with optimized bracing for accurate low-frequency response
- Connections: 2 XLR balanced combo jacks, 1 3.5mm aux, 2 XLR-M loop-through, 1 XLR-M mix out

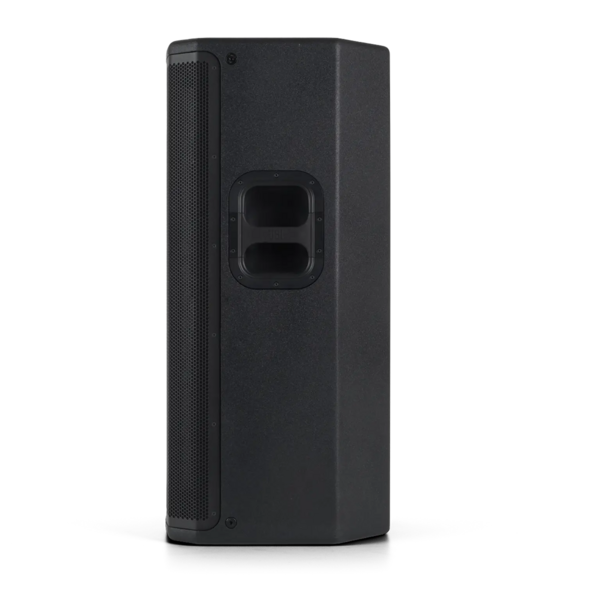

- Two integrated side handles
- Mounting: single 36mm pole socket, eight M10 suspension points
- Quiet fanless operation
- Ultra-low system latency: <1 ms
- Net weight: 36.6 kg (80.6 lbs)
- Dimensions: 938.5 x 446 x 434 mm (H x W x D)
- Shipping dimensions: 990 x 535 x 535 mm (H x W x D)
| Frequency Range (-10dB) | 40 Hz - 20 kHz |
|---|---|
| Frequency Range (-3dB) | 46 Hz - 18 kHz |
| Coverage Pattern | 90° x 50° |
| Transducer Impedance | Woofer 4 Ω, Mid-Range 8 Ω, Tweeter 8 Ω |
| Max SPL | 136.1 dB |
| Power Rating | 2000W Peak |
| Cooling | Natural Convection, No Fan |
| Crossover Frequency | 542 Hz; 2100 Hz |
| I/O | 2 Combo Inputs, 1 3.5 mm Stereo Jack, 2 XLR Through Out, 1 Mix Out |
| Suspension/Mounting | 8x M10 Suspension Points, Single 36 mm Pole Mount |
