JBL-SLP12/T-WH | LOW PROFILE ON-WALL LOUDSPEAKER - WHITE. 40W PINK/80W CONTINUOUS, 8OHM, 70V/100V. (PRICE EA, BUY PR)
JBL-SLP12/T-WH
LOW PROFILE ON-WALL LOUDSPEAKER - WHITE. 40W PINK/80W CONTINUOUS, 8OHM, 70V/100V. (PRICE EA, BUY PR)
JBL-SLP12/T-WH
LOW PROFILE ON-WALL LOUDSPEAKER - WHITE. 40W PINK/80W CONTINUOUS, 8OHM, 70V/100V. (PRICE EA, BUY PR)
- UM : EA

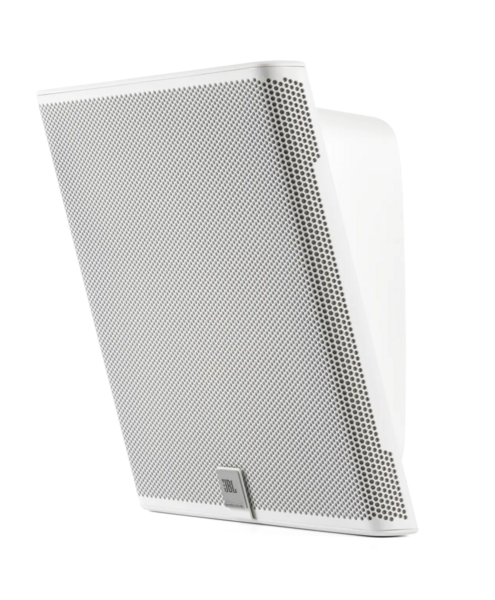

The SLP12/T full-range on-wall loudspeaker provides superior sound and broad, consistent coverage in a sleek, low-profile enclosure, with a powerful 75mm (3-inch) driver that delivers the legendary sound that JBL is known for. The SLP12/T is an ideal foundation for a range of applications: It features a 15-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation. This compact-yet-robust speaker boasts 40-watt power handling, delivering clean, clear sound at any volume.
Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.
The stylish, highly versatile JBL SLP12/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.
Features:
- Transducers: 100 mm (4 in) polypropylene cone woofer and 1” silk-dome tweeter
- Power handling: 50W continuous pink noise, 100W continuous program
- 15° down-tilted coverage allows flush-to-wall mounting

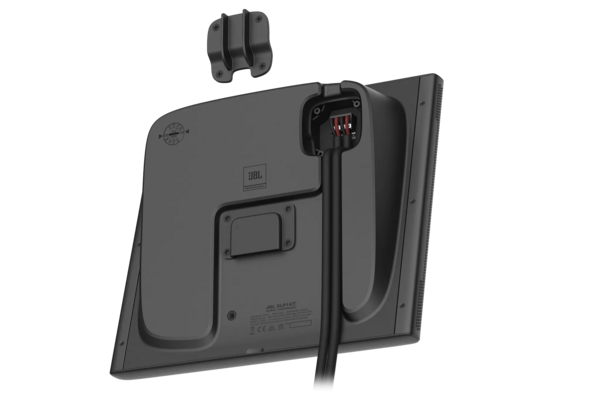

- Included slide-in wall bracket makes installation a breeze
- Included rain cover protects terminal compartment in protected outdoor applications
- Multi-tap transformer for use in 70V/100V systems
- ADA-compliant at less than 4 inches deep
| Frequency Range (-10dB) | 74 Hz - 20 kHz |
|---|---|
| Frequency Response (+/-3 dB) | 91 Hz - 18 kHz |
| Power Rating | 80W Continuous Program (2 hrs) 40W (160W peak) Continous Pink Noise (2 hrs) 20W (80W peak) Continuous Pink Noise (100 hrs) |
| Sensitivity | 84 dB (80 Hz – 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 106 dB peak (100 dB continuous, 2 hr) at 1m |
| Coverage Angle | 120°H x 120°V |
| Directivity Factor (Q) | 7.5 |
| Directivity Index (DI) | 8.8 dB |
| Nominal Impedance | 8Ω (at 8Ω tap setting) |
| Transformer Taps | 70V: 15 W, 7.5 W, 3.8 W, 1.9W100V: 15 W, 7.5W, 3.8W |
| Driver | 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton voice coil former |
| Terminals | 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | White |
| Dimensions | 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in) |
| Net Weight | 1.9 kg (4.2 lbs) |
| Included Accessories | Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. |
