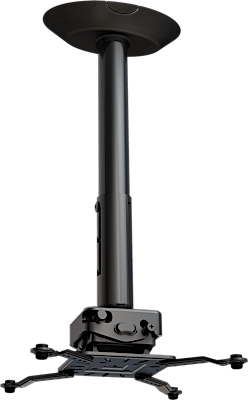

JKR3-24A | CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER

  • MAP: $341.99 / EA
  • List Price: $427.19 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER
CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER
Click image to enlarge
CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER
CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER

JKR3-24A
CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER

  • UM : EA
  • Estimated Weight: 12.6

Ideal for projectors weighing up to 70 lb. Built-in roll, pitch and yaw adjustments make alignment fast and easy. Quick release mechanism allows projector to be easily removed for service. Compatible with all 1.5 NPT threaded pipe.

Features:

  • Security hardware included for all connection points
  • 1" incremental drop length adjustment
  • Completely pre-assembled mounting interface for quick installation

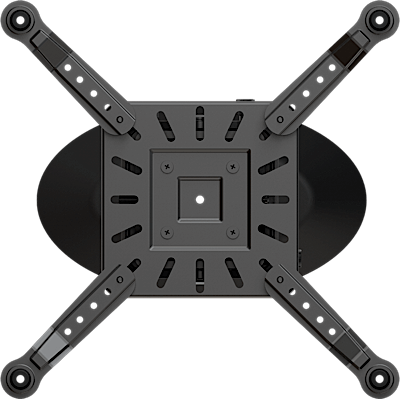

  • Fully adjustable roll, pitch and yaw
  • Quick release mechanism allows for easy service of projector
  • Through-column cable routing for an uncluttered look
  • Pre-sorted hardware pack for easy installation
Weight capacity 70lb (31.8kg)
Max mounting pattern 13.8" (351.5mm) diameter
Pitch(up/down) +/- 15°
Roll (side to side) +/- 8°
Rotation (yaw) 360°
Height adjustment 1" increments
1.5" NPT thread compatible Yes
Mounts surface wood joist, structural wood or structural concrete (accessory required HE4)
Joist spacing single joist
Construction aluminum/high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Color black
Warranty 10-years
