JKS-04 | SUSPENDED CEILING PROJECTOR KIT WITH JR UNIVERSAL ADAPTER AND 4" FIXED DROP

  • MAP: $292.79 / EA
  • List Price: $365.99 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
SUSPENDED CEILING PROJECTOR KIT WITH JR UNIVERSAL ADAPTER AND 4" FIXED DROP
SUSPENDED CEILING PROJECTOR KIT WITH JR UNIVERSAL ADAPTER AND 4" FIXED DROP
Click image to enlarge
SUSPENDED CEILING PROJECTOR KIT WITH JR UNIVERSAL ADAPTER AND 4" FIXED DROP
SUSPENDED CEILING PROJECTOR KIT WITH JR UNIVERSAL ADAPTER AND 4" FIXED DROP

JKS-04
SUSPENDED CEILING PROJECTOR KIT WITH JR UNIVERSAL ADAPTER AND 4" FIXED DROP

  • UM : EA
  • Estimated Weight: 13.6

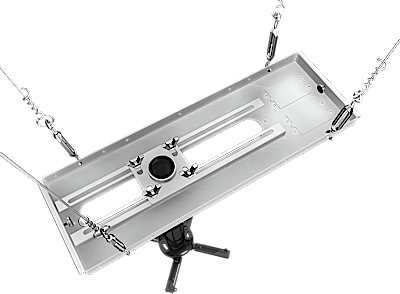

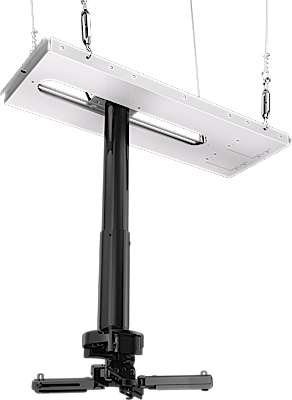

Complete projector mount kit with suspended ceiling adapter. Ideal for projectors weighing up to 50 lb. Built-in roll, pitch and yaw adjustments make alignment fast and easy. Quick release mechanism allows projector to be easily removed for service. Compatible with all 1.5 NPT threaded pipe.

Features:

  • 1" incremental drop length adjustment
  • Mounts above false ceiling tile on standard 2’x2’ or 2’x4’ grid system
  • Allows for infinite column placement within standard 2’x2’ or 2’x4’ grid system
  • Includes 22′ suspension wire, four turnbuckles, and anchors to suspend from wood or concrete structures
  • Fully adjustable roll, pitch and yaw
  • Quick release mechanism allows for easy service of projector
  • Through-column cable routing for an uncluttered look
  • Pre-sorted hardware pack for easy installation
Weight capacity 50lb (23kg)
Max mounting pattern 16.9"(430mm) diameter
Pitch (up/down) +/- 25°
Roll (side to side) +/- 6°
Rotation (yaw) 360°
Height adjustment 1" increments
1.5” NPT thread compatible Yes
Mounting surface wood joist, structural wood or structural concrete (accessory required HE)
Joist spacing single joist
Construction aluminum/high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Color black
Warranty 10-years
