JKS3-12 | SUSPENDED CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER AND 12" FIXED DROP

  • MAP: $441.59 / EA
  • List Price: $550.79 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
SUSPENDED CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER AND 12" FIXED DROP

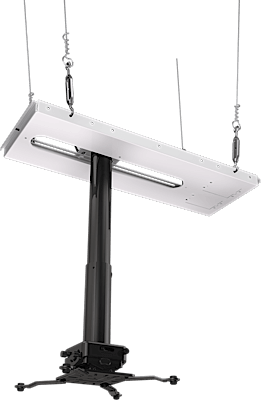

Click image to enlarge

JKS3-12
SUSPENDED CEILING PROJECTOR KIT WITH JR3 UNIVERSAL ADAPTER AND 12" FIXED DROP

  • UM : EA
  • Estimated Weight: 16.8

Complete projector mount kit with suspended ceiling adapter.Ideal for projectors weighing up to 60 lb. Built-in roll, pitch and yaw adjustments make alignment fast and easy. Quick release mechanism allows projector to be easily removed for service. Compatible with all 1.5 NPT threaded pipe.

Features:

  • 1″ incremental drop length adjustment
  • Mounts above false ceiling tile on standard 2’x2’ or 2’x4’ grid system
  • Allows for infinite column placement within standard 2’x2’ or 2’x4’ grid system
  • Includes 22′ suspension wire, four turnbuckles, and anchors to suspend from wood or concrete structures
  • Fully adjustable roll, pitch and yaw
  • Quick release mechanism allows for easy service of projector
  • Through-column cable routing for an uncluttered look
  • Pre-sorted hardware pack for easy installation
Weight capacity 60lb (27kg)
Max mounting pattern 13.8" (351.5mm) diameter
Pitch (up/down) +/- 15°
Roll (side to side) +/- 8°
Rotation (yaw) 360°
Height adjustment 1" increments
1.5” NPT thread compatible Yes
Mounting surface wood joist, structural wood or structural concrete (accessory required HE4)
Joist spacing single joist
Construction aluminum/high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Package specifications 24"x14"x8"
Color black
Warranty 10-years
