KB-802GM-IM | ENCORE MARINE CERTIFIED AND DNV-GL REGISTERED TWO-CHANNEL SELECTABLE FLUSH-MOUNT HEADSET/SPEAKER
KB-802GM-IM
ENCORE MARINE CERTIFIED AND DNV-GL REGISTERED TWO-CHANNEL SELECTABLE FLUSH-MOUNT HEADSET/SPEAKER
Click image to enlarge
KB-802GM-IM
ENCORE MARINE CERTIFIED AND DNV-GL REGISTERED TWO-CHANNEL SELECTABLE FLUSH-MOUNT HEADSET/SPEAKER
- UM : EA

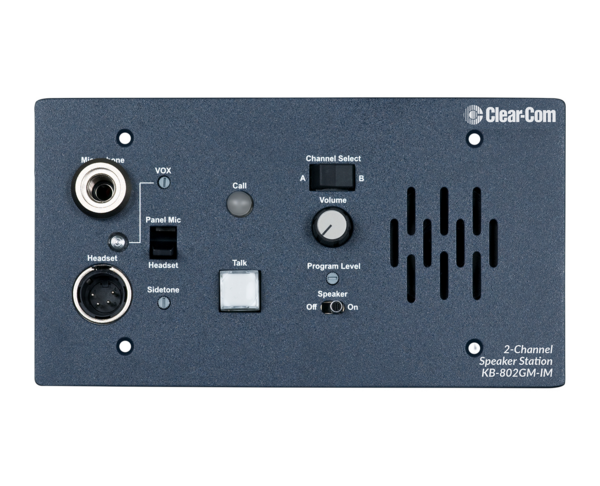

The KB-802GM-IM remote speaker station permits the user to select between two channels of partyline communications, with the ability to talk and/or listen on the selected channel.
Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.
Features:
- Selectable one- or two-channel communication
- IP20 environmental rating
- Asbestos-free per SOLAS Regulation II-I/3-5.2
- Marine Certification compliant with DNVGL-CG-0339 (2016)
- Visual and audible call signaling with bright LED indicator
- Mic jack for gooseneck mic with VOX circuitry
- Optional 4-wire daughter boards
- Wall or console mount

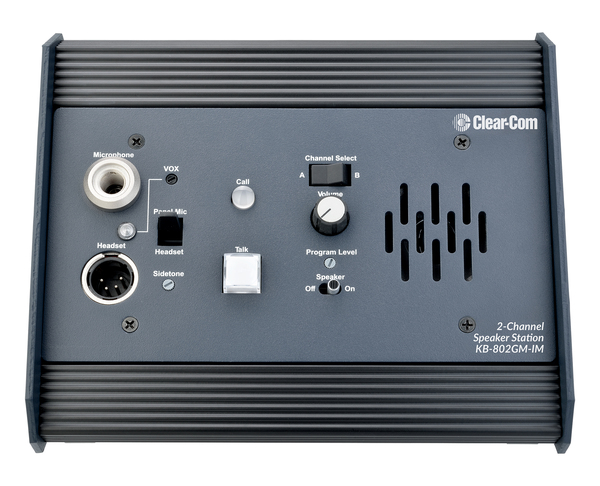

- Optional V-BOX for portable or desktop use
| Input Type | Electret |
|---|---|
| Input Impedance | >=2K |
| Mic Limiter Threshold | -2dBu ±3dB |
| Mic Limiter Range | >= 15dB |
| Maximum Level before Clipping | >= 20dBu |
| Output Limiter Threshold | +5dBu ± 3dB |
| Maximum Output Level before Distortion | >= 17dBu |
| Off Noise | < -74dBu |
| Crosstalk | < -60dB |
| Sidetone Null Capability | > 25dB |
×
