KD-MLV4X4PRO | 4X4 4K UHD HDMI SEAMLESS MATRIX MIXER WITH MULTI-VIEW TILING

KD-MLV4X4PRO
4X4 4K UHD HDMI SEAMLESS MATRIX MIXER WITH MULTI-VIEW TILING

• Multi-view Tiling Processor: Simultaneously watch multiple sources on a single screen
• Full-Screen Mode: View full-screen content on any display
• Multi-View Mode: Choose from 5 default layouts or create custom presets. The active multi-view layout is distributed to any display currently in multi-view mode
• Seamless Switching: Un-interrupted screen transitions during source selection while in full-screen mode

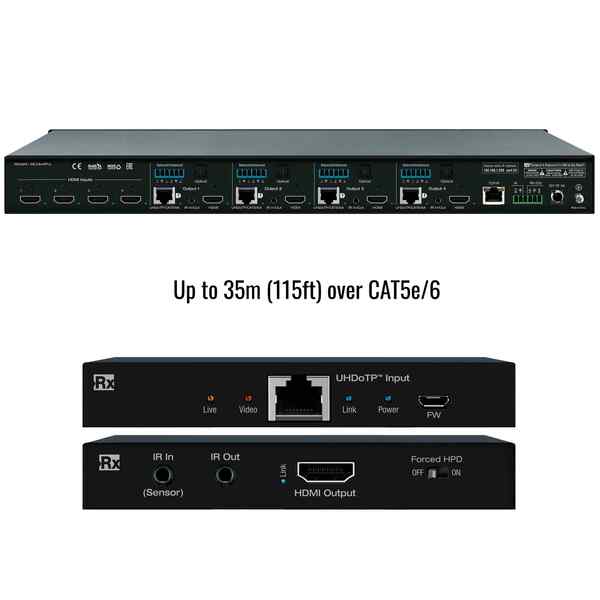

• Built-In UHDoTP Tx with PoC: The KD-MLV4x4Pro powers four included KD-EXMLVRx units
• Mirrored Outputs: Simultaneously active HDMI + UHDoTP connections per output display the same AV signal. This allows connection for a total of 8 possible displays at the same time
• Independent Audio Matrix: You can route audio output ports separately from HDMI & UHDoTP ports. Also, you may select audio from any source while in multi-view mode
• Video Resolution: Inputs support up to 3840 x 2160p 4:2:0 at 60fps. Outputs support 3840 x 2160p 4:4:4 at 30fps
• Signal Extension over CAT: Achieve 4K/UHD up to 35m (115ft) using CAT5e/6 or up to 40m (131ft) using CAT6A STP. For 1080p, the range extends up to 50m (164ft) using CAT5e/6 and up to 60m (197ft) using CAT6A STP
• Text Overlay: Each window can display the assigned name of its source. 16 Characters maximum with variable sizing and location settings
• 4K Down-Convert: Integrate 4K sources with legacy 1080p & 720p displays
• Image Layering: Stack images with customizable priority settings per output
• Custom Layouts and Border: Create custom Window layouts and choose window bezel width and coloring
• HDCP 2.2 Licensing: Fully licensed and compatible with HDCP 2.2
• Built-In Test Patterns: 9 selectable test screens help expedite installation
• IR Extension: You can extend IR via Rx units to control displays. Alternatively, you can collect IR from a remote to control a source at the matrix
• Web UI: Control AV routing and other basic functions from any web browser
• Audio De-Embed: 6 pin balanced / unbalanced and digital optical outputs
• Dolby Digital® & DTS™ Audio: Supports 2-channel and multi-channel surround formats up to 5.1 Dolby® / DTS™
• Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control

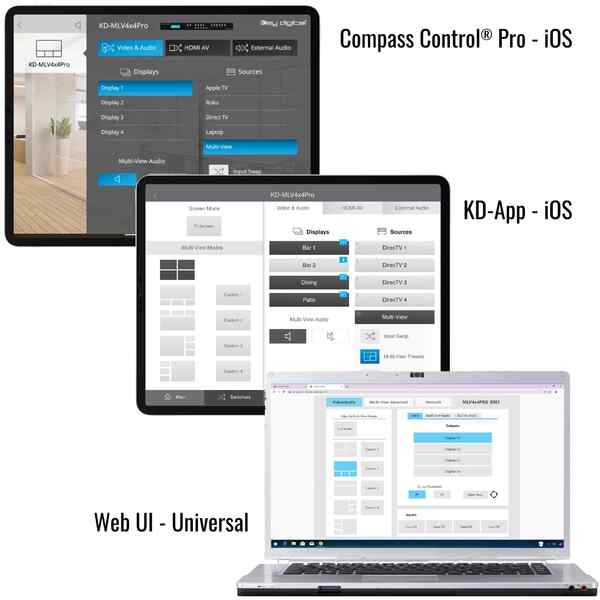

• Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App
• Control System Support: Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP-supported control systems via open API
