KD-MS8X8G-2 | 8 INPUT X 8 OUTPUT HDMI MATRIX SWITCHER, UHD/4K, HDCP2.2, AND INDEPENDENT AUDIO ROUTING
KD-MS8X8G-2
8 INPUT X 8 OUTPUT HDMI MATRIX SWITCHER, UHD/4K, HDCP2.2, AND INDEPENDENT AUDIO ROUTING
KD-MS8X8G-2
8 INPUT X 8 OUTPUT HDMI MATRIX SWITCHER, UHD/4K, HDCP2.2, AND INDEPENDENT AUDIO ROUTING
- UM : EA
- Estimated Weight: 10.0

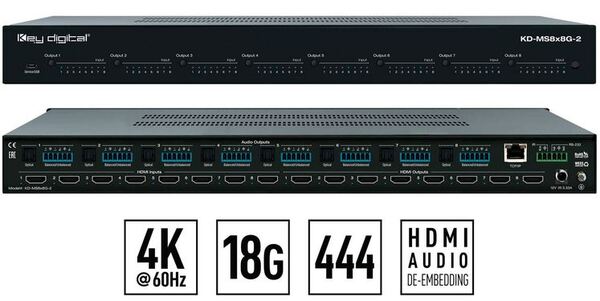

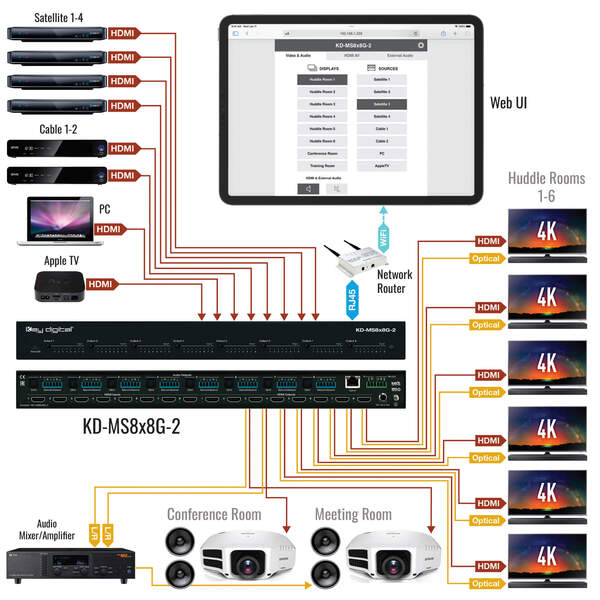

The Key Digital KD-MS8x8G-2 is a high-performance 8x8 HDMI matrix switcher with independent audio routing, designed for professional AV installations requiring flexible source distribution and advanced audio management. Featuring eight HDMI inputs and eight HDMI outputs, the KD-MS8x8G-2 supports resolutions up to 4K/60, HDCP 2.2 compliance, and Deep Color, delivering stunning video quality across all displays. Each HDMI input can be routed independently to any output, while balanced/unbalanced analog and digital coaxial audio outputs provide separate de-embedded audio control per source. Integration is simplified with full support for IR, RS-232, TCP/IP, and web UI control, plus EDID management and audio delay compensation. Ideal for commercial AV, conference rooms, digital signage, and control centers, this matrix switch ensures seamless video and audio distribution in mission-critical environments.
Features
- HDMI Matrix Switching: 8 HDMI sources to 8 HDMI outputs
- Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
- Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
- Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
- Independent Audio and Video Matrix: Output HDMI and Audio ports may route together or independently
- Dolby Digital® & DTS™ Audio: Supports 2-channel and multi-channel surround formats up to DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
- Web UI: Control AV routing and other basic functions from any web browser
- Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App and Key Digital Management Software™ Pro (KDMS™ Pro) PC setup Software
Additional Features
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID: Internal library with 15 internal EDID configurations per input, in addition to native EDID data for any Output/Display
- TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
- Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, Web UI, and TCP/IP Control
- Control System Support: Key Digital® app ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
