LA4-D | LA4-D-US DSI LA4-D, 4 CH AMP, DANTE, US VER

The JBL LA4-D is a 2RU, four-channel amplifier in the DSi 2.0 series designed for cinema audio applications. It provides bridgeable outputs and supports high-power-density operation at 2Ω, allowing a single channel to power up to four JBL surround speakers. The amplifier integrates Crown DSI Digital Screen Array technology with 32-bit/96kHz floating-point DSP and Crown DriveCore processing for improved power density, stability, and audio fidelity.

The LA4-D model includes both analog inputs and digital Dante/AES67 connectivity, supporting direct interfacing with Dolby Atmos systems without additional processing hardware. It features SNMP network connectivity for integration with theater management and cinema control systems. JBL Cinema Speaker presets are included to facilitate configuration, optimize audio playback, and provide equipment protection.

Features:

• 4 channels with bridgeable outputs
• Designed for JBL cinema speakers power requirements
• High power output at 2Ω (SA and MA models)
• D-models interface with Dolby Atmos directly
• SNMP and Ethernet connectivity; SA4-D, MA4-D, LA4-D add Dante/AES67
• HiQ port for HARMAN Audio Architect control
• 96kHz/32-bit floating-point processing with FIR filtering, LevelMAX limiting, 8-channel parametric EQ, delay settings
• Crown DriveCore technology for efficiency and reliability
• Built-in JBL Cinema Speaker presets, power-matched for optimal performance
• GPIO/AUX port for recall presets, mute, monitor health, power control

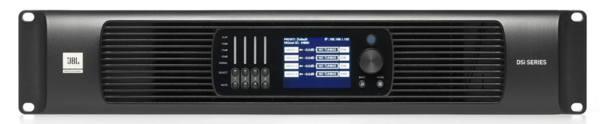

• Front-panel LCD and encoder for configuration
• Ultra-quiet operation (51dBA max fan noise)
• Standard 19-inch 2RU rackmount
