LEA CDS1504 | 4CH SMART AMP 1500W AT 4OHM, 8OHM, 70V/100V P/CH

  • MAP: $6,200.00 / EA
  • List Price: $6,200.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4CH SMART AMP 1500W AT 4OHM, 8OHM, 70V/100V P/CH

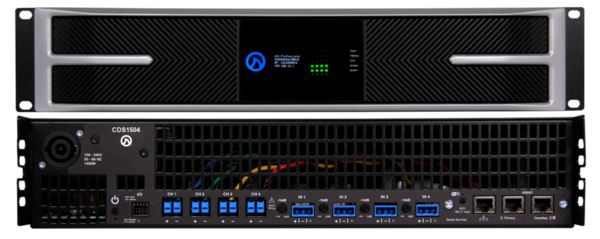

Click image to enlarge

LEA CDS1504
4CH SMART AMP 1500W AT 4OHM, 8OHM, 70V/100V P/CH

  • UM : EA

The LEA CDS1504 is a 4-channel amplifier delivering 1,500Wper channel. Each channel supports selectable direct HiZ (70V or 100V) or LoZ outputs. The unit offers three network connectivity options: built-in Wi-Fi access point, connection to an existing venue Wi-Fi network, or FAST Ethernet via Cat5 or Cat6 cable.

The amplifier includes analog backup inputs, AES67 inputs, and external I/O control for remote on/off and fault monitoring. It supports Cloud connectivity for remote control, monitoring, and notifications through network connection.

Features:

  • 3 Ways To Connect: Built-in Wi-Fi Access Point, Existing Wi-Fi Network, Local Area Network
  • Web Browser-Based Ui
  • Cloud Control
  • Direct Low-Z & Hi-Z
  • Smart Power Bridge
  • Universal Switch-Mode Power Supply
  • Analog Balanced Inputs
  • 96khz Analog Devices Dsp
  • External I/O Port
  • Highly Efficient Class-D Output Stage
InputsAnalog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
AES67: 8 x 8 AES67 at 96kHz or 48kHz, Multicast or Unicast, Configurable via the AES67 Controller Software
Thd+N0.1% (20Hz to 20kHz)
Frequency Response20Hz to 20kHz, +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2?
Signal To Noise Level105dB (20Hz to 20kHz referenced to 8?)
Crosstalk70dB (20Hz to 20kHz)
Amplifier Output ClassificationClass D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
Dsp ArchitectureAnalog Devices Sharc 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
Input MatrixRoutable matrix
any input to any output with primary and secondary input priority
CrossoversAdvanced DSP with Linear Phase Brickwall FIR Crossovers and up to 48dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
Parametric Eq8 Band Parametric EQ per channel
Output Delay4 seconds per channel
Output ProtectionDC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
User Adjustable LimitingPeak Voltage and RMS Voltage
Load MonitoringRealtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
User InterfaceWebUI, SharkWare, 3rd Party API, and Cloud control
External I/OExternal I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health
Ac Mains100VAC - 240VAC +/- 15% 50Hz or 60Hz
Power SupplyUniversal Switch Mode Power Supply with Power Factor Correction
