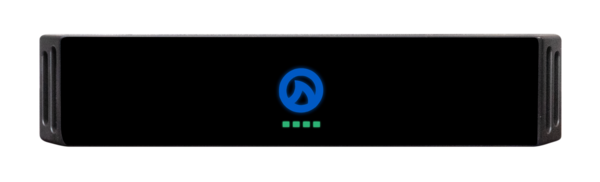

LEA CS34D | 4CH HALF RACK SMART AMP 30W-4OHM, 8OHM, 70V/100V P/CH, DANTE
LEA CS34D
4CH HALF RACK SMART AMP 30W-4OHM, 8OHM, 70V/100V P/CH, DANTE
LEA CS34D
4CH HALF RACK SMART AMP 30W-4OHM, 8OHM, 70V/100V P/CH, DANTE
- UM : EA
The Connect Series 34D delivers a feature-rich amplifier in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, four amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.

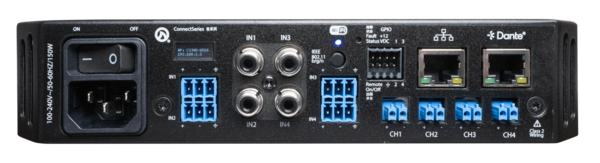

| Inputs | Analog: 4 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity 4 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity Dante: 4 x 4 Dante at 48kHz, Multicast or Unicast AES 67: Configurable via the Dante Controller software |
|---|---|
| Thd+N | 0.1% (20Hz to 20kHz) |
| Frequency Response | 20Hz to 20kHz, +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2? |
| Signal To Noise Level | 102dB (20Hz to 20kHz referenced to 8?) |
| Crosstalk | 70dB (20Hz to 20kHz) |
| Amplifier Output Classification | Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel |
| Dsp Architecture | Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters |
| Input Matrix | Routable matrix any input to any output with primary and secondary input priority |
| Crossovers | Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
| Parametric Eq | 8 Band Parametric EQ per channel |
| Output Delay | 100ms per channel |
| Output Protection | DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection |
| User Adjustable Limiting | Peak Voltage and RMS Voltage |
| Load Monitoring | Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources |
| User Interface | Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare |
| External I/O | External I/O In: Toggles Remote On/Off External I/O Out: Indicates Amplifier Health 4 general Purpose input and output pins for general input |
| Ac Mains | 100VAC – 240VAC +/- 15% 50Hz or 60Hz |
| Power Supply | Universal Switch Mode Power Supply |
