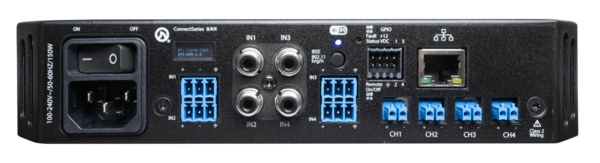

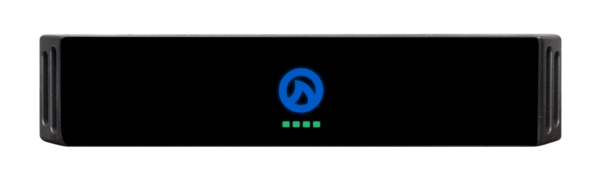

LEA CS64 | 4CH SMART AMP 60W-4OHM, 8OHM, 70V/100V P/CH

  • MAP: $1,300.00 / EA
  • List Price: $1,300.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4CH SMART AMP 60W-4OHM, 8OHM, 70V/100V P/CH
4CH SMART AMP 60W-4OHM, 8OHM, 70V/100V P/CH
Click image to enlarge
4CH SMART AMP 60W-4OHM, 8OHM, 70V/100V P/CH
4CH SMART AMP 60W-4OHM, 8OHM, 70V/100V P/CH

LEA CS64
4CH SMART AMP 60W-4OHM, 8OHM, 70V/100V P/CH

  • UM : EA

The Connect Series 64 delivers a feature-rich amplifier in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, four amplifier channels with Lo-Z, 70V, or 100V selectable by channel. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.

InputsAnalog: 4 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity
4 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
Thd+N0.1% (20Hz to 20kHz)
Frequency Response20Hz to 20kHz, +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2?
Signal To Noise Level102dB (20Hz to 20kHz referenced to 8?)
Crosstalk70dB (20Hz to 20kHz)
Amplifier Output ClassificationClass D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
Dsp ArchitectureAnalog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
Input MatrixRoutable matrix
any input to any output with primary and secondary input priority
CrossoversUp to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
Parametric Eq8 Band Parametric EQ per channel
Output Delay100ms per channel
Output ProtectionDC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
User Adjustable LimitingPeak Voltage and RMS Voltage
Load MonitoringRealtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
User InterfaceWeb Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare
External I/OExternal I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health
4 general Purpose input and output pins for general input
Ac Mains100VAC – 240VAC +/- 15% 50Hz or 60Hz
Power SupplyUniversal Switch Mode Power Supply
