8CH SMART AMP 80W-4OHM, 8OHM, 70V/100V P/CH

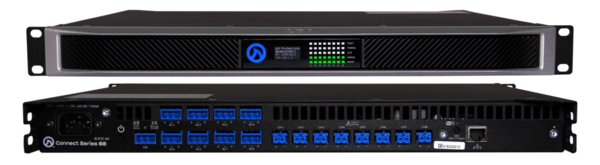

Click image to enlarge

LEA CS88
8CH SMART AMP 80W-4OHM, 8OHM, 70V/100V P/CH

  • UM : EA

The CONNECTSERIES 88 is an 8-channel amplifier with 80 watts per channel. As part of the Network CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 88 features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Features:

  • 3 Ways To Connect: Built-in Wi-Fi Access Point, Existing Wi-Fi Network, and Local Area Network
  • Web Browser-Based Ui
  • Cloud Control
  • Direct Low-Z & Hi-Z
  • Smart Power Bridge
  • Universal Switch-Mode Power Supply
  • Analog Balanced Inputs
  • 96khz Analog Devices Dsp
  • External I/O Port
  • Highly Efficient Class-D Output Stage
INPUTSAnalog: 8 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
THD+N0.1% (20Hz to 20kHz)
FREQUENCY RESPONSE20Hz to 20kHz, +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2?
SIGNAL TO NOISE LEVEL105dB (20Hz to 20kHz referenced to 8?)
CROSSTALK70dB (20Hz to 20kHz)
AMPLIFIER OUTPUT CLASSIFICATIONClass D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP ARCHITECTUREAnalog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
INPUT MATRIXRoutable matrix; any input to any output with primary and secondary input priority
CROSSOVERSUp to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
PARAMETRIC EQ8 Band Parametric EQ per channel
OUTPUT DELAY100ms per channel
OUTPUT PROTECTIONDC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
USER ADJUSTABLE LIMITINGPeak Voltage and RMS Voltage
LOAD MONITORINGRealtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
USER INTERFACEWeb Browser User Interface, 3rd Party API control, or CLOUD control
EXTERNAL I/OExternal I/O In: Toggles Remote On/Off; External I/O Out: Indicates Amplifier Health
AC MAINS100VAC - 240VAC +/- 15% 50Hz or 60Hz
POWER SUPPLYUniversal Switch Mode Power Supply
