LIN556 | LINK; ADJ 4-UNIVERSE DMX HARDWARE CONTROLLER FOR USE WITH IPAD AND ADJ'S AIRSTREAM LINK IOS APP
LIN556
LINK; ADJ 4-UNIVERSE DMX HARDWARE CONTROLLER FOR USE WITH IPAD AND ADJ'S AIRSTREAM LINK IOS APP
LIN556
LINK; ADJ 4-UNIVERSE DMX HARDWARE CONTROLLER FOR USE WITH IPAD AND ADJ'S AIRSTREAM LINK IOS APP
- UM : EA
- Estimated Weight: 22.5

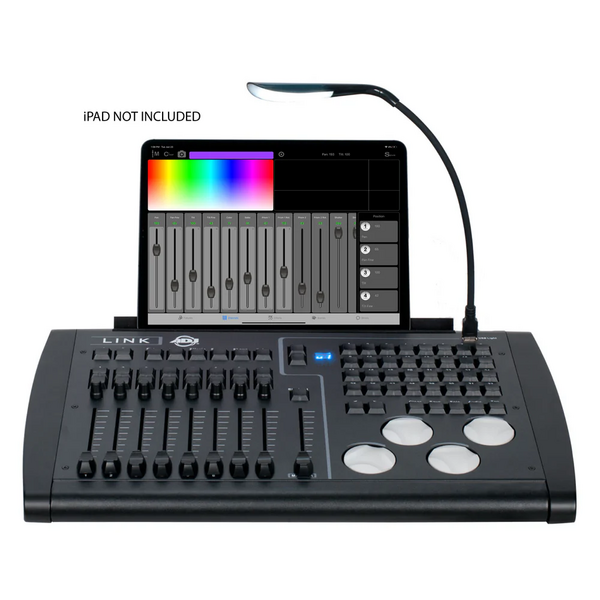

The ADJ LINK is a powerful 4-universe DMX controller designed to integrate with iPad for a streamlined and portable lighting control solution. Housed in a rugged carry case with a versatile stand, the LINK provides four DMX universes via 5-pin XLR outputs, along with wireless and wired Art-Net and sACN support. Built with convenience in mind, it includes a built-in Wi-Fi access point for direct connection to an iPad running the Airstream DMX Pro app. Featuring tactile faders, push-button rotary encoders, and four rotary wheels for precise control, the LINK offers hands-on operation for live events, clubs, houses of worship, and touring productions. With MIDI, Ethernet, and USB connectivity, the ADJ LINK is a complete and portable control hub for modern lighting systems.

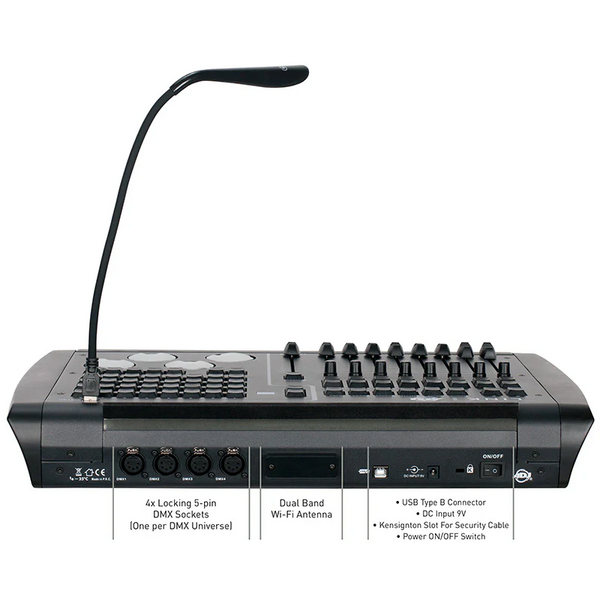

CONTROL / CONNECTIONS:
(6) General Purpose Buttons
(1) Master and (8) Control 100mm Faders
(16) Page Playback Buttons Above Faders
(8) Rotary Dials with Push-In Selection Above Faders
(1) Blackout Button
(32) Instant Effect or Scene Calling Buttons
(8) Bump / Momentary Effect Buttons
(4) Rotary Encoder Wheels with Push-In Selection
USB 2.0 Type “B” Port
(4) 5-pin DMX output ports
ADDITIONAL FEATURES:
WiFi and DMX512
2.4 and 5Ghz GHz DSSS Wifi Network
4, Hardwired, DMX Universes
USB Input for Gooseneck Work Light
Removable Outer Case for 6U Rack Mounting
Kensington™ Security Device Slot
SIZE / WEIGHT:
Length: 20.3” (514mm)
Width: 13.2” (336mm)
Vertical Height: 3.5” (88mm)
Weight: 13.0 LBS. (5.9 kg)

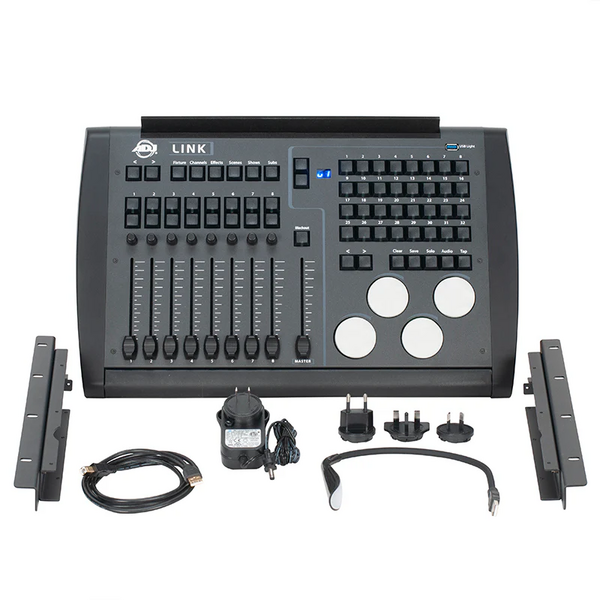

INCLUDED ITEMS:
USB Cable
Mult-voltage DC9V Power Supply (100-240V, 50/60Hz)
4 Power Adapters: Type A (US), Type C (Europe), Type G (UK), Type I (Australia, China)
Rack Mount Kit
