LQ-R4W8 | EIGHT CH 4-WIRE IP COMMUNICATIONS INTERFACE FOR EXTENDING 4-WIRE AUDIO COMMUNICATIONS AND CALL

LQ-R4W8
EIGHT CH 4-WIRE IP COMMUNICATIONS INTERFACE FOR EXTENDING 4-WIRE AUDIO COMMUNICATIONS AND CALL

Provides 4 channels of 2-wire analog partyline with pass-through (8 XLR connectors).

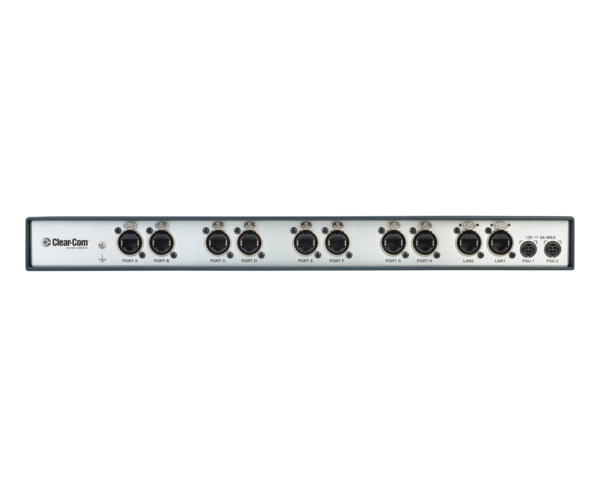

LQ-R4W8: 1RU 8-port 4-wire interface and (4) 4-wire with GPIO interface

Details

LQ IP Interface

• Networked interfaces devices Over: LAN, WAN, Internet

• Linked systems or standalone deployment

• Decentralized audio mixing & routing

Provides: 24 Channels & Direct Connections Transports: Call, RMK, Logic, Panel & SIP

Link Group

• LQ devices form non-blocking Link Group:

-Gen-IC Virtual Intercom

-LQ IP Interface

-HelixNet HMS-4X²

Analog Interface Hardware Options

• 2-Wire Clear-Com & TW with power, termination, & auto-nulling

• 4-Wire Line-Level Audio transformer isolated with Clear-Com data

• 4-Wire Line/Mic-Level Audio with GPIO transformer isolated with GPI & GPO

Virtual Interface Ports

• I.V. Direct/IVC Clear-Com Interface

To: Eclipse E-IPA card, Arcadia Over: LAN, WAN, Internet

• SIP Client Interface Ports¹

To: 3rd party SIP telephone systems

Dial Control: CCM or Eclipse

Virtual Client Host

• Agent-IC¹ Virtual Mobile Client

For: Android, iOS

• Station-IC¹ Virtual Desktop Client

For: Windows, MacOS

Configuration

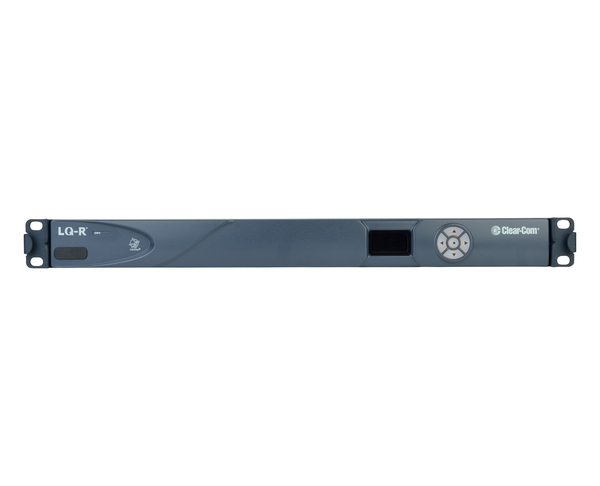

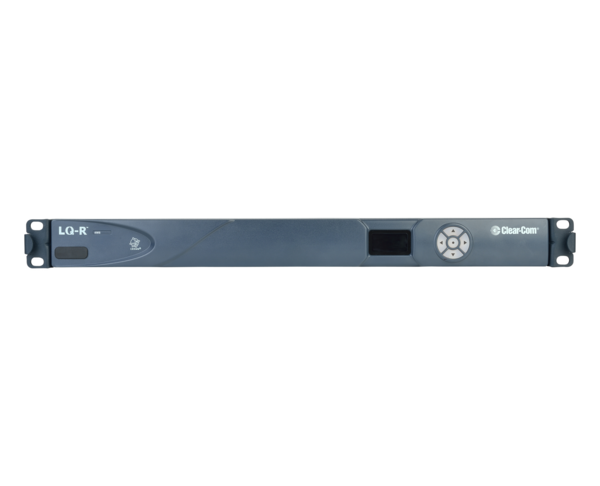

• OLED front panel display

• CCM browser setup, configuration & monitoring

• Save & Restore

Hardware Options

• 2 Port Portable Unit

• 4 Port or 8 Port 1RU Rackmount Units

• Rugged & lightweight
