LSR705I | COMPACT HIGH OUPUT TWO-WAY EXTERNALLY POWERED STUDIO MONITOR WITH 725G FIVE-INCH (127 MM)
LSR705I
COMPACT HIGH OUPUT TWO-WAY EXTERNALLY POWERED STUDIO MONITOR WITH 725G FIVE-INCH (127 MM)
LSR705I
COMPACT HIGH OUPUT TWO-WAY EXTERNALLY POWERED STUDIO MONITOR WITH 725G FIVE-INCH (127 MM)
- UM : EA
The LSR705i is a studio monitor designed for multi-channel audio monitoring in post-production and broadcast environments, including control rooms and mobile broadcast trucks. It features a compact enclosure with centrally amplified components and is engineered to provide detailed imaging and extended frequency response, supporting immersive audio formats. The design incorporates technologies from JBL's M2 Master Reference Monitor.
The LSR705i is optimized for scalable system integration and tuning within broadcast and post-production facilities. Installation is facilitated by its design for centralized amplification and system configuration.
Features:
- Next Generation Systems for Post and Broadcast Production
- Next Generation Driver Technology
- Patented Image Control Waveguide
- Compact Install-Friendly Enclosures
| Frequency Response ±3 dB | 48 Hz – 23 kHz |
|---|---|
| Frequency Range | 39 Hz – 36 kHz |
| Maximum Continuous SPL (80 Hz - 20 kHz) | >101 dB SPL / 1m |
| Maximum Peak SPL (80 Hz - 20 kHz) | >107 dB SPL / 1m |

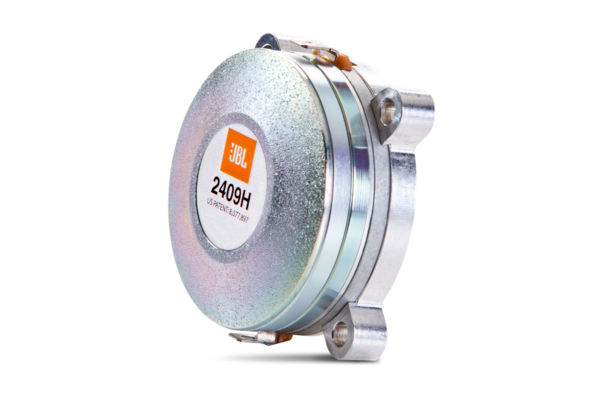

| HF Driver | 2409H |

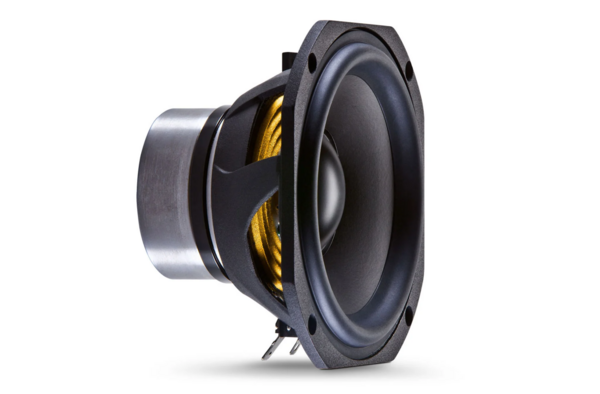

| LF Driver | 725G |
| Dividing Network Transition Frequency | 1.9 kHz |
| Input Connectors | Phoenix Terminals, accepts 12 gauge speaker wire |
| Enclosure | Birch plywood reinforced for mounting |
| Mounting | Top, bottom, and rear mounting points with 2-hole pattern |
