LSR708I | COMPACT HIGH OUPUT TWO-WAY EXTERNALLY POWERED STUDIO MONITOR WITH 728G EIGHT-INCH (203 MM)
LSR708I
COMPACT HIGH OUPUT TWO-WAY EXTERNALLY POWERED STUDIO MONITOR WITH 728G EIGHT-INCH (203 MM)
LSR708I
COMPACT HIGH OUPUT TWO-WAY EXTERNALLY POWERED STUDIO MONITOR WITH 728G EIGHT-INCH (203 MM)
- UM : EA

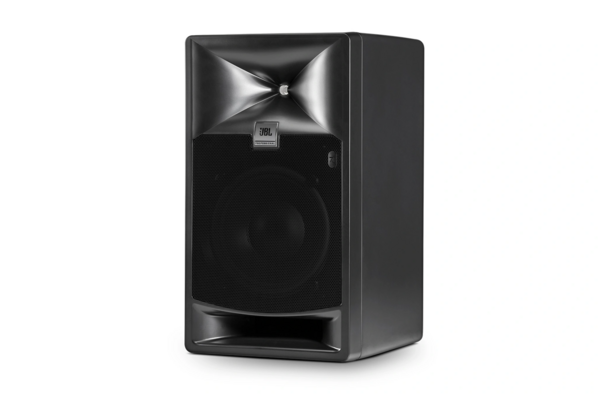

The JBL LSR708i is a compact studio monitor designed for multi-channel monitoring applications in post-production and broadcast environments, including control rooms and trucks. It features a centrally amplified design and utilizes patented technologies from JBL’s M2 Master Reference Monitor to deliver extended frequency response and detailed imaging.
The LSR708i is engineered for scalable system configurations supporting immersive audio formats. The monitor is tuned for accurate sound reproduction and is designed for straightforward installation in professional audio setups.
Features:
- Next Generation Systems for Post and Broadcast Production
- Next Generation Driver Technology
- Patented Image Control Waveguide
- Compact, Install-Friendly Enclosures
| Frequency Response | 45 Hz – 23 kHz |
|---|---|
| Frequency Range | 35 Hz – 36 kHz |
| Maximum Continuous SPL (80 Hz - 20 kHz) | >108 dB SPL / 1m |
| Maximum Peak SPL (80 Hz - 20 kHz) | >114 dB SPL / 1m |

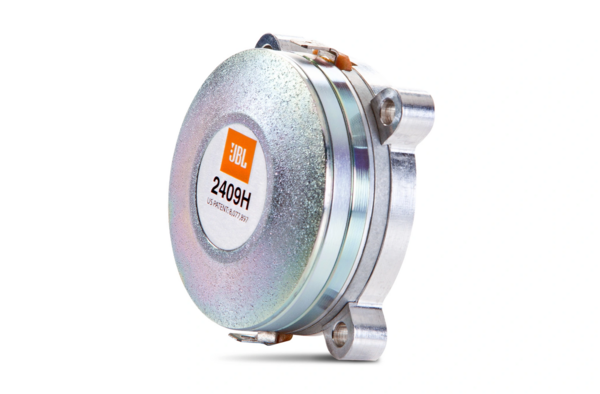

| HF Driver | 2409H |

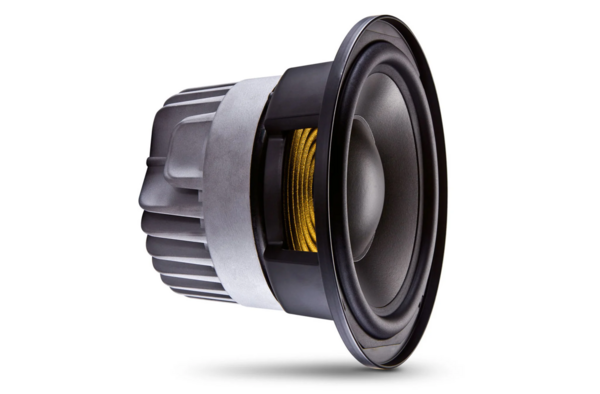

| LF Driver | 728G |
| Dividing Network Transition Frequency | 1.7 kHz |
| Input Connectors | Phoenix terminals accept 12 gauge speaker wire |
| Enclosure | Birch plywood reinforced for mounting |
| Mounting | Top, bottom, and rear mounting points with 4-hole pattern |
