LT2S-810-72-BB |

  • MAP: $143.26 / EA
  • List Price: $162.80 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
Click image to enlarge

LT2S-810-72-BB

  • UM : EA

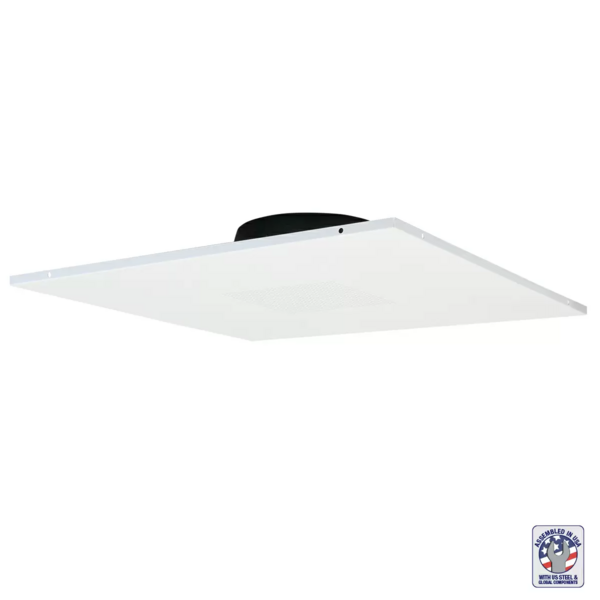

Quick-install speaker system for suspended tile ceilings features an 8-inch dual cone driver with dual voltage (25V/70V) transformer, 2x2 frame with 7-in. square grille and enclosure. For commercial paging and background music.

  • Driver (810):  8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.
  • Transformer:  Dual voltage 25V/70V transfomer with taps at .25, .5, 1, 2, 5W
  • Grille (2×2 Frame):  Square 7-inch grille pattern is centered in steel frame with white powder coat finish.
  • Enclosure (8XD4):  .147 cu.ft. steel with speaker leads that exit through a metal clamp for fast connection. Black.
  • Mounting Aids:  Restraint tabs.
