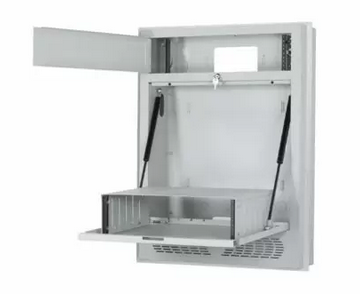

LTCR-3320R | TILTOUT WALL RACK W/DAMPERS, 3U + 3U, 20"D, RECESSED

  • MAP: $1,468.19 / EA
  • List Price: $1,668.40 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
TILTOUT WALL RACK W/DAMPERS, 3U + 3U, 20"D, RECESSED
Click image to enlarge

LTCR-3320R
TILTOUT WALL RACK W/DAMPERS, 3U + 3U, 20"D, RECESSED

  • UM : EA
  • Estimated Weight: 68.0

The LTCR wall rack features dampers that control the opening of the main compartment, ensuring a slow lowering of the vertically-mounted equipment. The top compartment (upper bay) is designed to mount a horizontal control panel and is hinged for swing-out access. This model is for recessed installation and includes a trim plate. Network-Grey powder-coat finish. Includes electrical box in the base.

  • Rack Space:  3U (top) + 3U (main)
  • Rack Height:  34.06 in. (36.00 w/trim plate)
  • Rack Width:  25.00 in. (26.50 w/trim plate)
  • Rack Depth:  6.09 in.
  • Load capacity 50 lbs.
  • For recessed installation
  • 3U top compartment (horizontal hold) is ideal for a 19 in. panel. Hinge on door allows swing-open access. Fixed rails pivot down for easier access to cables.
  • 3U main compartment (vertical hold) for equipment up to 5.25 in. x 15.3 in. x 19 in. Opens with dampers to control rate of descent. Includes fixed rails and a removable shelf.
  • Both compartments secure with a single lock
  • Backbox with keyholes on 16 in. centers
  • Knockouts in top, bottom, rear
  • Vents at bottom and along integral formed handle
  • 1 in. cable raceway on each side
  • EO box in base
  • Network-Grey powder-coat finish
