M-10LZ E | EXPORT MODEL-230V POWER CONDITIONER W/EVS SURGE PROTECTION, RGBW LIGHTS & USB CHARGING

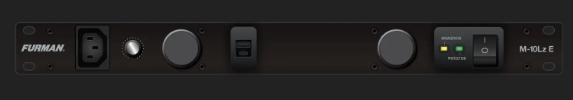

M-10LZ E
EXPORT MODEL-230V POWER CONDITIONER W/EVS SURGE PROTECTION, RGBW LIGHTS & USB CHARGING

The M-10Lz E is the mid-tier power conditioner in the Merit Z Series for 230V markets, combining trusted surge protection and clean power with tuneable RGBW pull-out lights for enhanced rack visibility. It features Extreme Voltage Shutdown (EVS) technology that continuously monitors incoming AC and instantly disconnects during dangerous over or under voltage events to protect your connected equipment. Built-in standard-level surge protection with a "Protection OK" indicator, combined with AC noise filtration, reduces RFI/EMI interference for cleaner, more stable power. Convenient front-panel USB-C (5V/3A) and USB-A (5V/2.4A) fast charging ports keep phones, tablets, and wireless accessories powered right from your rack. The tuneable RGBW pull-out lights illuminate your rack for fast, clean setups in dark venues, studios, and install closets, with selectable colors for stage vibe or studio ambiance.

Technical Specifications

Family                                                             Merit Z

Maximum Output Current                             10 Amps

Line Cords                                                      3x18 AWG

Operating Voltage                                          230V~50/60Hz

Spike Protection Mode                                    Line to neutral

Energy Dissipation                                          230 Joules

Peak Impulse Current                                     6500 Amps

Maximum Continuous Operating Voltage      350 VAC RMS

Let-through Voltage                                       920 Volts

Noise Attenuation                                           Greater than 20dB, 200kHz–10MHz

Under-voltage Shutoff (EVS)                          180VAC ± 5%

Over-voltage Shutoff (EVS)                            274VAC ± 5%

Dimensions                                                      1.75?H x 19?W x 7.5?D (4.4 cm x 48.3 cm x 19.1 cm)

Weight                                                            6.6 lb / 3 kg

Construction                                                   Steel chassis, integrated rack ears, black painted
