M1000A35 | 8" POWERED / ACTIVE SOUND MASKING SPEAKER
M1000A35
8" POWERED / ACTIVE SOUND MASKING SPEAKER
M1000A35
8" POWERED / ACTIVE SOUND MASKING SPEAKER
- UM : EA
The AtlasIED M1000A35 is a self-contained 8" powered sound masking speaker designed to improve speech privacy and reduce distractions in commercial environments. Featuring an integrated amplifier and built-in sound masking generator, this unit eliminates the need for external DSP or amplification, simplifying system design and installation.
Engineered specifically for sound masking applications, the M1000A35 produces a consistent, non-intrusive masking signal that blends seamlessly into the environment, helping to increase confidentiality and productivity. The 8" driver delivers even coverage, while onboard controls allow for easy adjustment of output levels and frequency shaping. Ideal for open offices, healthcare facilities, financial institutions, and call centers, this speaker provides a cost-effective, scalable solution for modern workplace acoustics.
The M1000A35 is highly efficient, utilizing a Class D topology amplifier and is UL2043 plenum rated. The included power supply is an external in line UL rated 24VDC power supply. Installation is easy to do by utilizing a single suspension point mounting method. Included are two removable hanger brackets.
Features:
- UL2043 Plenum Rated
- Energy Efficient
- Efficient Wide Range 8" Speaker
- 5-Watt Class D Topology Amplifier to Power Internal Speaker
- 30-Watt Amplifier External Output to Feed Additional Passive Speakers
- Separate Internal Speaker & External Output Level Controls
- Variable Hi-Cut Filter
- External UL Rated 24VDC In-Line Power Supply
- Remote Level Control GPIO Port
- 2 Removable Hanger Handles for Suspended Mounting

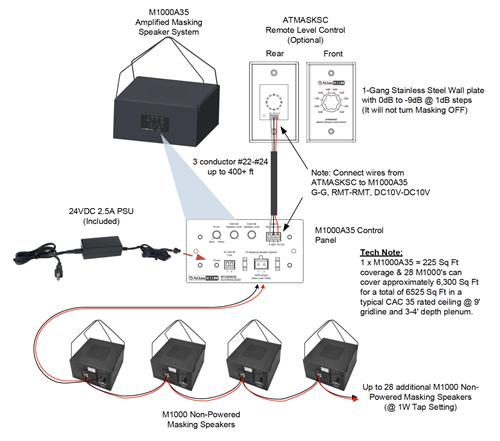

- Optional ATMASKSC Masking Commissioning Level Control
Use Options
· Sound masking systems for speech privacy
· Open office environments and coworking spaces
· Healthcare facilities and patient privacy areas
· Financial institutions and secure offices
· Call centers and customer service floors
· Standalone masking systems or distributed masking layouts
Also Consider
· Additional M1000A35 units for scalable masking coverage
· Ceiling or plenum mounting accessories
| System Type | Self-Contained Active Sound Masking System |
|---|---|
| Sensitivity | 97dB Peak, 94dB Average |
| 70.7V Power Taps | .25, .5, 1, 2 and 4 |
| Width | 11 9/16" (29.37002 cm) |
| Speaker | 8" Full Range, Qty 1 |
| Amplifier Power | Internal 5-Watts, External Amplifier Output 30-Watts (Max Load 166 Ohms) |
| Masking Power | Standalone 225 sq ft, 30W Secondary Output (see data sheet) |
| Frequency Response | 80Hz - 16kHz |
| Masking Generator | Contoured Pink Noise |
| Level Control | Qty 2 1 x Internal Speaker, 1 x Extermal Amplifier Output |
| Output Voltage | 70.7V |
| GPIO | VCA Remote Level, 10V, 3-position Euro-Style |
| PSU | Included In-Line 100-240V Input, 24VDC 2.5A Output |
| Dimensions (HxWxD) | 5.67" x 11.61" x 11.61" (144mm x 295mm x 295mm) |
| Weight | 11.25lb (5.11kg) |
| Safety Listed | MA100035: UL2043, UL60065, CE External Power Supply: UL, CE |
| Warranty Period | 36 months from date of purchase |
