MA-704 | IFB CONTROL PANEL MIC JACK: ENCORE IFB CONTROL PANEL WITH 6.35MM/1/4" MICROPHONE JACK,
MA-704
IFB CONTROL PANEL MIC JACK: ENCORE IFB CONTROL PANEL WITH 6.35MM/1/4" MICROPHONE JACK,
Click image to enlarge
MA-704
IFB CONTROL PANEL MIC JACK: ENCORE IFB CONTROL PANEL WITH 6.35MM/1/4" MICROPHONE JACK,
- UM : EA

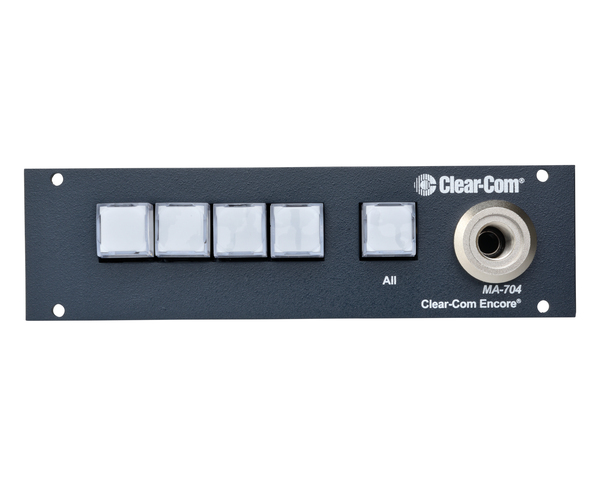

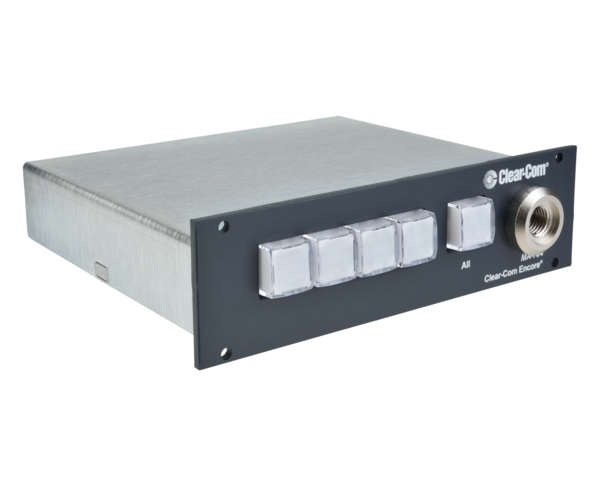

The MA-704 Leader Control and Talent Access Station enables individual access to four Talent channels. It includes an "ALL" button that accesses all Talent positions on the MA-704 and connected AX-704 expansion stations simultaneously. The unit contains audio line-driver circuits for cue audio.
One MS-704 unit is required at each talent access control location. For power requirements of analog partyline systems, refer to the Encore Power Supply Calculator.
Features:
- Four talent channels
- All ifb button accesses all talent channels
- Tally lights indicate ifb channels in use
- Optional rack mount kit for up to 12 talent access buttons in 1ru
- Powered by intercom line
| Input type | Electret |
|---|---|
| Input impedance | >=2kω |
| Mic limiter threshold | 0db ± 3db |
| Mic limiter range | >= 15db |
| Frequency response talent mic | 200 - 18khz ± 3db |
| Distortion panel mic - talent | <= 0.5% |
| Distortion extension line - talent | <= 0.1% |
| Noise panel mic – talent | < -65dbu |
| Noise extension line - talent | < -85dbu |
| Input voltage range | 20-30v dc |
×
×
×
