MA-725F-AM 3CU | 4 CHANNEL MIXER POWER AMPLIFIER

MA-725F-AM 3CU
4 CHANNEL MIXER POWER AMPLIFIER

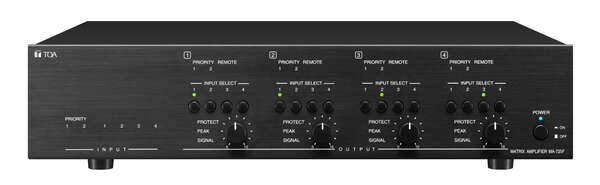

The TOA MA-725F-AM is an all-in-one, high-power solution designed for delivering multi-zone audio in professional environments. It seamlessly combines a 6×4 audio matrix mixer, built-in DSP, and a 4-channel Class-D power amplifier—all within a single chassis. This makes it a flexible, space-efficient choice for applications ranging from restaurants and retail to offices and educational campuses

Key Features:

• Matrix Routing: Route up to four stereo line inputs to any of the four amplifier outputs, ideal for Background Music (BGM), announcements, and zoned playback
• Priority Inputs: Two selectable MIC/LINE inputs with configurable priority levels, mute sensitivity, and mute-hold timing—perfect for paging overrides
• Powerful Capture: Delivers 250 W per channel over four channels at selectable 70 V or 100 V output—ample power for busier zones or larger spaces
• Customized DSP: Each output channel features independent DSP presets—equipped with general equalizations, TOA speaker EQs, loudness curves, and crossover settings for subwoofers
• Speaker Protection: 50 Hz high-pass filters protect connected speakers; Coverage includes over-current, thermal, and short-circuit protections for robust reliability
• Smart & Easy Control: Setup requires no PC. Configuration is done via DIP-switches or browser-based Smart Control using wireless remote—ideal for remote administration
• Expandable Control Options: Supports optional wall-mounted remotes (like WP-700-AM) and remote microphones (RM–9012C) for zoned control of volume and source selection via CAT-5 cabling

Ideal Settings & Applications:

• Multi-zone background music systems for restaurants, retail stores, offices, schools, and more
• Paging systems requiring priority overrides and flexible zoning.
• Large installations where compact, high-power, and reliable audio distribution are needed.
