MAVERICKPYXIS | INCLUDES: IP POWERKON POWER CORD, 2PC OMEGA BRACKETS
MAVERICKPYXIS
INCLUDES: IP POWERKON POWER CORD, 2PC OMEGA BRACKETS
Click image to enlarge
MAVERICKPYXIS
INCLUDES: IP POWERKON POWER CORD, 2PC OMEGA BRACKETS
- UM : EA
- Estimated Weight: 39.0

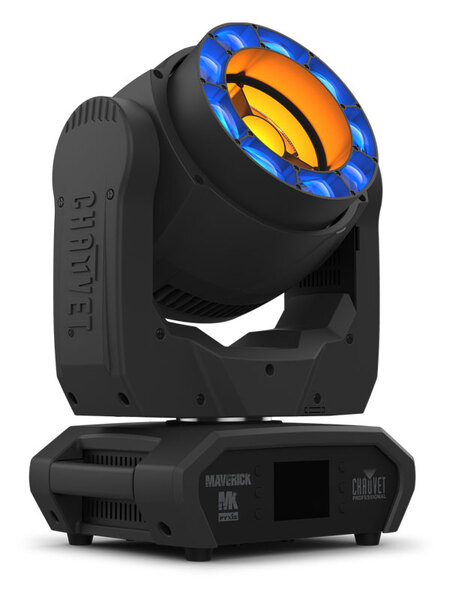

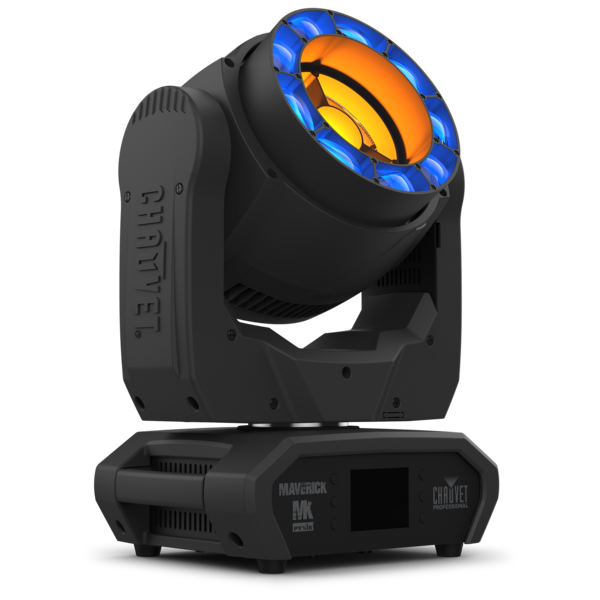

Maverick MK Pyxis empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 4.9° to 58.4° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.
Features:
- Features a 60W RGBW center pixel and an outer ring of nine 15W RGBW LEDs.
- A fixed 2.7° center beam is complemented by a motorized 4.9° to 32° zoom on the outer ring.
- Includes a virtual gobo wheel with background colors for impressive atmospheric effects.
- Offers a 2,800 K to 10,000 K CCT range and a virtual wheel with 21 preset colors.
- Supports DMX, W-DMX, Art-Net, sACN, and Kling-Net for maximum control flexibility.
- Converts TCP/IP data to DMX, allowing for more efficient and shorter cable runs.
| Light Source | 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy |
|---|---|
| Light Source | 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy |
| Color Temperature (range) | 2,800 to 10,000 K |
| Beam Angle (center pixel and outer ring) | 2.8° |
| Beam Angle (center pixel) | 2.7° |
| Beam Angle (outer ring) | 4.9° to 32° |
| Field Angle (center pixel and outer ring) | 6.7° |
| Field Angle (center pixel) | 4.5° |
| Field Angle (outer ring) | 7.9° to 47.8° |
| Cutoff Angle | 8.3° to 58.4° |
| Zoom Range | 4.9° to 58.4° |
| Lumens – Source | (center pixel) 1,700 (outer ring) 4,300 |
| Lumens – Output | (center pixel) 1,100 (outer ring) 2,400 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Power Connection | Edison plug to Seetronic Powerkon IP65 |
| Power Input/Output | Seetronic Powerkon IP65 |

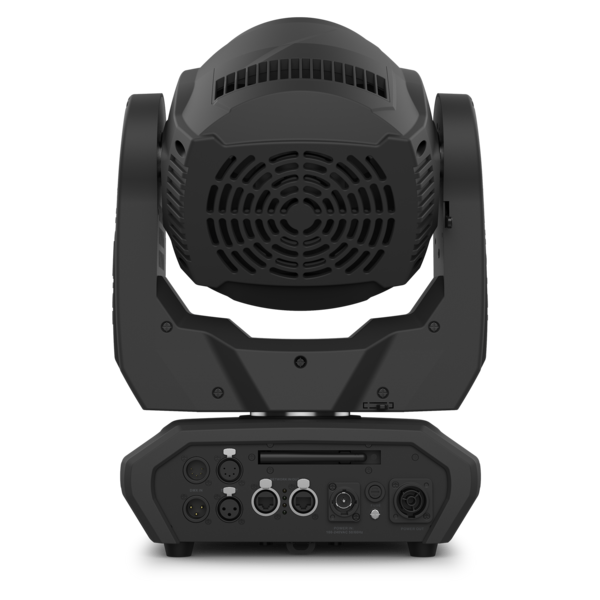

| Data Connectors | 3- and 5-pin XLR, , Amphenol XLR Net RJ45 Connectors in/out |
| Cable Length (power) | 5 ft (1.5 m) |
| Certifications | CE |
| IP Rating | IP20, dry location |
×
×
